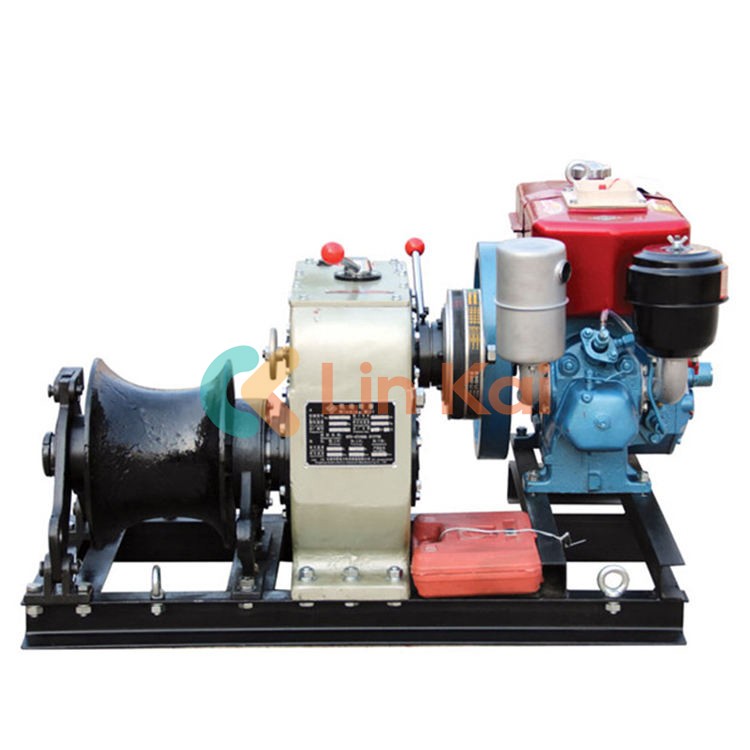

Diesel Engine Powered Winch

Ningbo Lingkai Manufacture’s wholesale diesel engine-powered winch is made in China. It has a belt-driven, powered winch and a shaft-driven, fast-powered winch. Our motorized winches are used for tower erection and lifting operations. The diesel engine powered winch has the characteristics of low speed and high torque, and it is more fuel-efficient. The drum size of the winch and the diameter can be customized, and the length and diameter of the steel rope can be requested too.

Send Inquiry

Product Description

Ningbo Lingkai Manufacture’s high-quality diesel engine powered winch bulk is made in China. They are the leading manufacturer in China, and the tools are sold in more than 50 countries.

A diesel engine powered winch is applied for tower erection and sagging operation in power line construction.

The diesel engine powered winch is equipped with a mechanical brake system for safety while working on site. The switch box is produced in our CNC machine center. The structure of the switch box is simple and efficient, and the machine is easy to operate and maintain.

The diesel engine powered winch has a high-speed planetary gear box. It can be driven by a belt or by a shaft. There are pros and cons, and the speed of the file is anti-reverse.

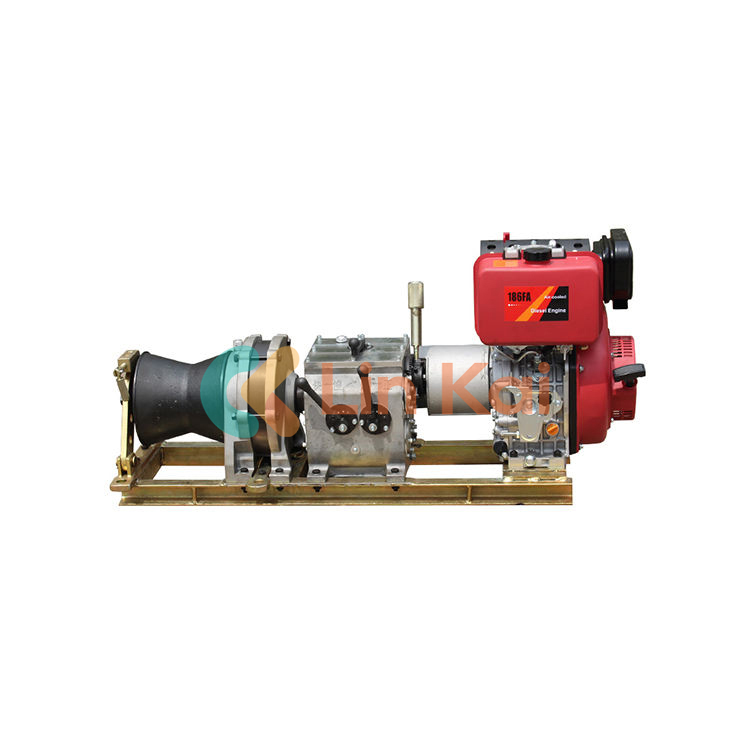

Fast-powered shaft-driven winch data sheet

Item number	Model	Rotation direction	Gear	Tractive force （T）	Traction speed （M/MIN）	Power （KW）	Outline size （MM）	Weight （KG）
09131	JJQ-30 6HP Gasoline engine	corotation	SlowⅠ	3.0	5	4.04	900x400x430	94
			SlowⅡ	2.0	7
			FastⅠ	0.9	16
			FastⅡ	0.6	24
		reversal	Slow	No lifting	4
			Fast		13
09131A	JJC-3 5HP Diesel engine	corotation	SlowⅠ	3.0	5	2.90	1000x450x500	115
			SlowⅡ	2.0	7
			FastⅠ	0.9	16
			FastⅡ	0.6	24
		reversal	Slow	No lifting	4
			Fast		13
09135	JJQ-5B 9HP Gasoline engine	corotation	FastⅠ	0.9	24	6.6	1100x525x600	138
			FastⅡ	1.5	13
			SlowⅠ	2.5	8
			SlowⅡ	5.0	4
		reversal	Slow	No lifting	4
			Fast		18
09135A	JJC-5B 186F Diesel engine	corotation	FastⅠ	0.9	24	5.7	1000x498x600	148
			FastⅡ	1.5	13
			lowⅠ	2.5	8
			SlowⅡ	5.0	4
		reversal	Slow	No lifting	4
			Slow		18

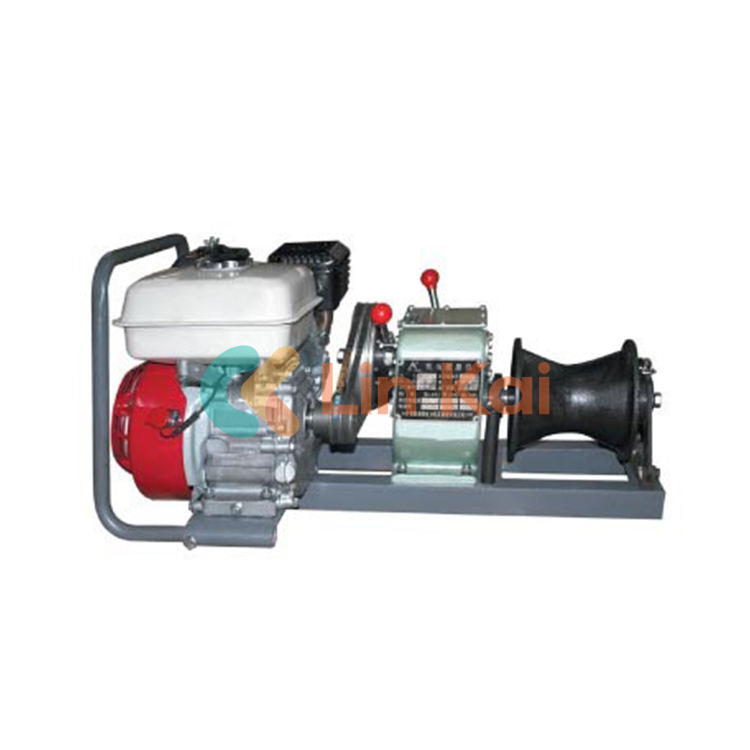

Blet driven transmission line pulling winches

Item number	Model	Rotation direction	Gear	rotational speed （）	Traction speed （m/min）	Tractive force （T）	Power （KW）	Outline size （mm）	Weight （kg）
09121	JJQ-3Q 6HP Gasoline engine	corotation	Ⅰ Slow	9.0	4.0	3.0	4.04	840x450x500	82
		corotation	Ⅱ Fast	16.0	6.6	1.8		780x450x500	85
		reversal	Reverse	7.5	3.3	No lifting		780x450x500	85
09121A	JJC-30 170F Diesel engine	corotation	Ⅰ Slow	11.5	5.0	3.0	2.94	840x600x500	108
		corotation	Ⅱ Fast	21.0	9.0	1.8
		reversal	Reverse	10.0	4.5	No lifting
09121B	JJD-30 3KW Electromotor	corotation	Ⅰ Slow	8.5	4.0	3.0	3.00	770x600x460	108
		corotation	Ⅱ Fast	10.5	6.5	1.8
		reversal	Reverse	7.0	3.0	No lifting
09123	JJQ-50 9HP Gasoline engine	corotation	Ⅰ Slow	6.5	4.0	5.0	6.61	1000x550x520	135
		corotation	Ⅱ Fast	16.0	9.0	2.2
		reversal	Reverse	7.0	4.0	No lifting
09123A	JJC-50 6.6HP Diesel engine	corotation	Ⅰ Slow	8.0	4.5	5.0	4.41	1000x750x600	168
		corotation	Ⅱ Fast	19.0	11.0	2.3
		reversal	Reverse	10.0	5.5	No lifting
09123B	JJD-50 4KW Electromotor	corotation	Ⅰ Slow	5.5	3.5	5.0	4.00	1000x850x520	160
		corotation	Ⅱ Fast	14.0	8.0	3.0
		reversal	Reverse	7.0	4.0	No lifting
09125	JJQ-80 13HP Gasoline engine	corotation	Ⅰ Slow	5	3	8	9.60	1000x550x520	168
		corotation	Ⅱ Fast	9	5	4.5
		reversal	Reverse	5	3	No lifting
09125A	JJC-80 10.5HP Diesel engine	corotation	Ⅰ Slow	7	4	8	7.86	1000x750x630	230
		corotation	Ⅱ Fast	13	7.5	4
		reversal	Reverse	6.5	3.7	No lifting
