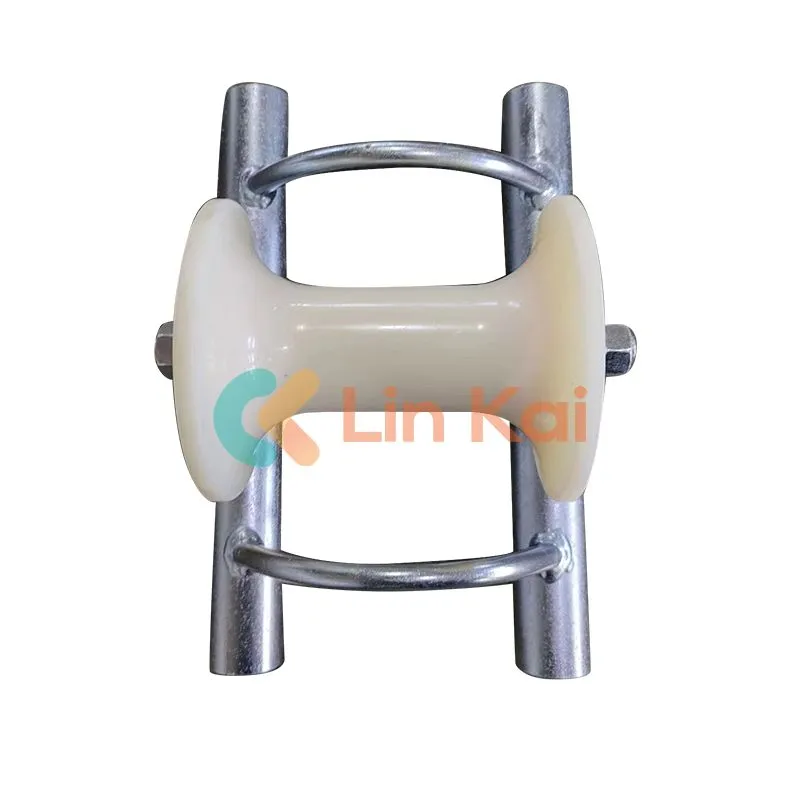

Straight Line Cable Pulling Roller

Lingkai's Straight line cable pulling rollers are available with nylon and aluminum pulleys, ideal for cables less than 200mm in diameter. Straight line cable pulling rollers are suitable for larger diameter cables and can be customized to meet various steering angle requirements. We also offer cable entry protection rollers with a rugged zinc-coated steel surface and nylon pulleys to ensure safe cable entry and alignment.

Send Inquiry

Product Description

China Straight line cable pulling roller Features:

With both nylon and aluminum sheaves, our cable ground roller are perfect for wires dwindling in diameter to less than 200mm.

Larger diameter cables work well with the triple sheave cable roller, which can be tailored to produce any necessary turning angle.

Our cable entrance protection roller, which is intended to safeguard cable extensions, is able to be positioned within a tube entrance at any angle. It features a single nylon sheave to maintain cable alignment and a strong, lockable zinc-coated steel surface.

The D series cable entrance protection roller has a single nylon sheave and an improved length fixed mechanism.

For safeguarding wires and pulling ropes at the pithead, our cable pithead roller is a necessary instrument.

Support and service:

Our team of technical specialists is ready to help and respond to any inquiries you might have regarding our offerings. To help you get the most of our tools, we also provide services like product training and on-site support.

Our Electrical Cable Pulling Tools are the ideal option for your cable installation needs, regardless of the size of your project—small residential or large commercial.

High quality Straight line cable pulling roller for laying underground cable

Item No.	Model	Working load (KN)	Diameter of Cable (mm)	Construction of Cable Roller	Weight (kg)
21171	SHL1	10	Φ150	Casting Aluminum Frame Aluminum Roller	5.4
21172	SHL1N	10	Φ150	Casting Aluminum Frame Nylon Roller	3.6
21181	SHL1B	10	Φ160	Steel Plate Base Aluminum Roller	5.5
21182	SHL1BN	10	Φ150	Steel Plate Base Nylon Roller	3.7
21183	SHL2BN	10	Φ160		5.5
21184	SHL3BN	10	Φ200		8.0
21191	SHL1G	10	Φ150	Steel Tubing Frame Aluminum Roller	5.1
21192	SHL1GN	10	Φ150	Steel Tubing Frame Nylon Roller	3.3
21193	SHL2GN	10	Φ160		5.7
21194	SHL3GN	10	Φ200		8.0
21201	SHLG1	10	Φ150	Steel Tubing Long Legs Aluminum Roller	9.4
21202	SHLG1N	10	Φ150	Steel Tubing Long Legs Nylon Roller	7.8

Note: The Straight line cable pulling rollers are used for installation different underground power cable up to diameter Ø200mm, please choose the suitable roller according to your cable size.

All the sheaves are mounted on bearings. The frame is made of galvanized steel.

Cable Corner Rollers

Item No.	Model	Working load (KN)	Size of Cables (mm)	Weight (kg)
21211	SHL	8	≤ Ø80	5.5
21221	SHL2	10	≤ Ø150	12
21222	SHL2N	10	≤ Ø150	10
21223	SHL3	10	≤ Ø150	11
21224	SHL3N	10	≤ Ø150	9
