Cable Protection Roller

Ningbo Lingkai Manufacture’s Cable Protection Roller are made of the highly galvanized steel frame, while rollers are the 96% pure nylon imported, the bulk make in China cable turning rollers are used for guiding and protection of cable in installation project. And it can put at the duct end at any angle. Cable rollers, we have the cable turning rollers and cable protection rollers, they can used for cable from cable reel stands to the underground hole or trench.

Send Inquiry

Product Description

Ningbo Lingkai Manufacture’s Cable Protection Roller has the cable protection rollers and cable triple turning roller; they are all widely application in the underground cable installation site. These are all made of highly galvanized steel, and roller self are the nylon.

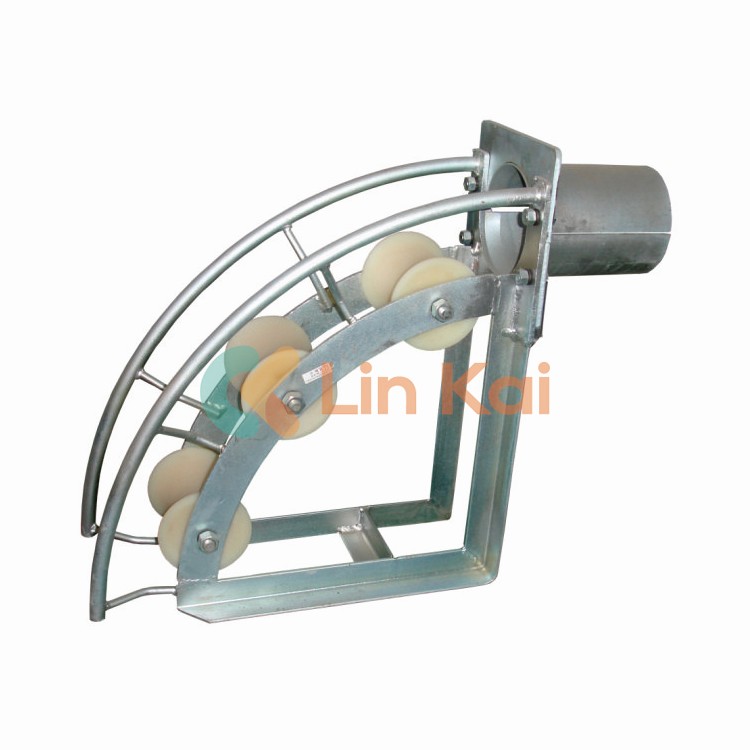

Cable Protection Roller, is used for guiding cable in duct whole during cable pulling project, it is the cable entrance protection rollers, apply to cable extension. The roller can be placed in tube entrance at arbitrary angle and lockable zinc-coated steel structure with single nylon sheave.

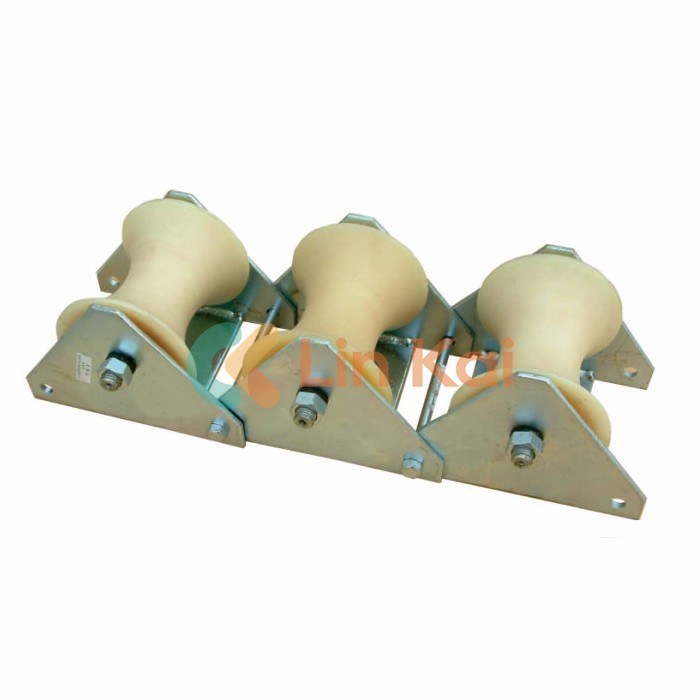

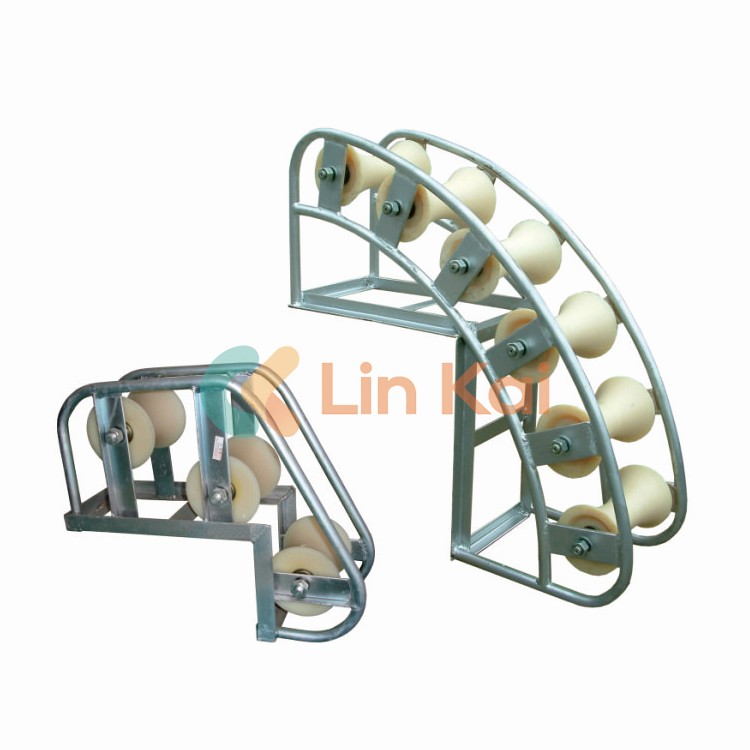

Cable Turning Roller, corner cable roller (triple), is used to apply large diameter cable pass through, they can built up arbitrary turning angle on requirement, and sheaves can be nylon and aluminum.

B seriescable protection rollers, it is used for guiding and protection of cable in installation project. Split tube with roller for cable guidance and protection. With Nylon sheave, galvanized steel, the roller could be placed at the duct end at any angle.

Item No.	Model	Duct Diameter (mm)	Weight (kg)
21241	SH80B	80	4.3
21242	SH90B	90	4.9
21243	SH100B	100	5.2
21244	SH130B	130	6.3
21245	SH150B	150	7.6
21245A	SH180B	180	10
21246	SH200B	200	12

WholesaleC seriescable protection rollers, it is used for guiding cable in duct whole during cable pulling project. With triple nylon rollers on galvanized steel frame. Bend radius 450mm

Ref. No.	Model	Duct Diameter (mm)	Weight (kg)
21251	SH80C	80	17
21252	SH90C	90	18
21253	SH100C	100	20
21254	SH130C	130	20.5
21255	SH150C	150	21
21255A	SH180C	180	22
21256	SH200C	200	23

BulkC1 seriescable protection rollers, is used for guiding cable in duct whole during cable pulling project. Structure: With four nylon rollers fixed on galvanized steel frame. Bend radius 1000mm. With Nylon sheave, galvanized steel, the roller could be placed at the duct end at any angle.

Ref. No.	Model	Duct Diameter (mm)	Weight (kg)
21261	SH80C1	80	24
21262	SH90C1	90	25
21263	SH100C1	100	26.5
21264	SH130C1	130	27.5
21265	SH150C1	150	28.5
21266	SH200C1	200	30.5

D seriescable protection rollers in stock

Ref. No.	Model	Duct Diameter (mm)	Weight (kg)
21271	SH80D	80	4.3
21272	SH90D	90	4.5
21273	SH100D	100	5.0
21274	SH130D	130	6.9
21275	SH150D	150	9.0
21276	SH200D	200	12.8

Manhole cable protection rollers,it is used for guiding and protection of cable into Manhole.21281-3 with Single roller fixed on galvanized steel plate.21285-7 With multi nylon rollers fixed on galvanized steel frame. Bend radius 700mm.

Item No.	Model	Max. Dia. Of cable	Weight (kg)	Sheave Material
21281	SHH1	Φ80 mm	6.2	Aluminum
21282	SHH1N	Φ80 mm	6.7	Nylon
21283	SHH1G	Φ80 mm	10.8	Steel
21285	SH450J	Φ100 mm	7.7	Nylon
21286	SH700J3	Φ160 mm	14	Nylon
21287	SH700J6	Φ160 mm	23	Nylon
