Straight Line Cable Roller

NINGBO Lingkai being the largest manufacturer of tools and equipment for cable installation, we developed and produced a variety of China straight line cable rollers to suit various working conditions and surroundings.

Send Inquiry

Product Description

Durable Straight Line Cable roller is employed in the pulling and installation of subterranean cables. All of the Straight Line Cable rollers are mounted on bearings to lessen installer fatigue, and they are made to avoid pulling friction and damage. Straight Line Cable roller is made of aluminum and nylon can attach cables with the least amount of resistance possible without causing damage to the cable jacket.

Straight Line Cable Rollers of Cable Installation Tools Applications:

Guiding and Supporting Cables:

In underground cable installation site, underground cable roller made in China is necessary to guide and support cables to prevent sagging or twisting. Cable laying rollers are commonly used to achieve this purpose. These cable rollers are usually installed at the bends of cable lines.

The primary function of underground cable roller is to ensure that cables move along the designed path. This is particularly important because cables pass through multiple points in the system, and external factors such as the weight of the cables and the environment can affect their movement significantly. By installing cable laying rollers, cables can be directed and supported optimally.

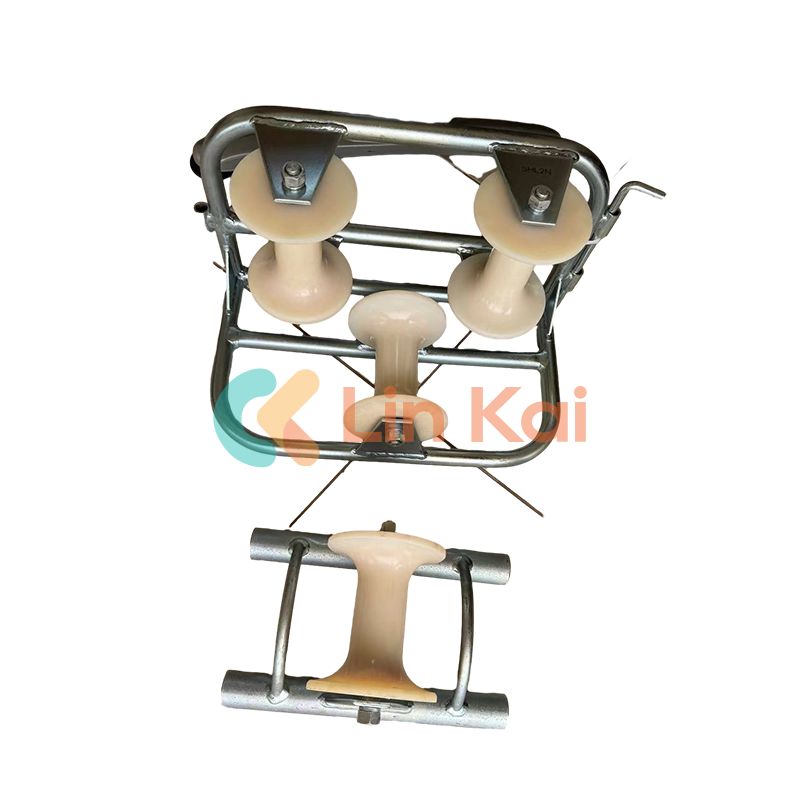

Straight Line Cable roller for laying underground cable

Item No.	Model	Working load (KN)	Diameter of Cable (mm)	Construction of Cable Roller	Weight (kg)
21171	SHL1	10	Φ150	Casting Aluminum Frame Aluminum Roller	5.4
21172	SHL1N	10	Φ150	Casting Aluminum Frame Nylon Roller	3.6
21181	SHL1B	10	Φ160	Steel Plate Base Aluminum Roller	5.5
21182	SHL1BN	10	Φ150	Steel Plate Base Nylon Roller	3.7
21183	SHL2BN	10	Φ160		5.5
21184	SHL3BN	10	Φ200		8.0
21191	SHL1G	10	Φ150	Steel Tubing Frame Aluminum Roller	5.1
21192	SHL1GN	10	Φ150	Steel Tubing Frame Nylon Roller	3.3
21193	SHL2GN	10	Φ160		5.7
21194	SHL3GN	10	Φ200		8.0
21201	SHLG1	10	Φ150	Steel Tubing Long Legs Aluminum Roller	9.4
21202	SHLG1N	10	Φ150	Steel Tubing Long Legs Nylon Roller	7.8
