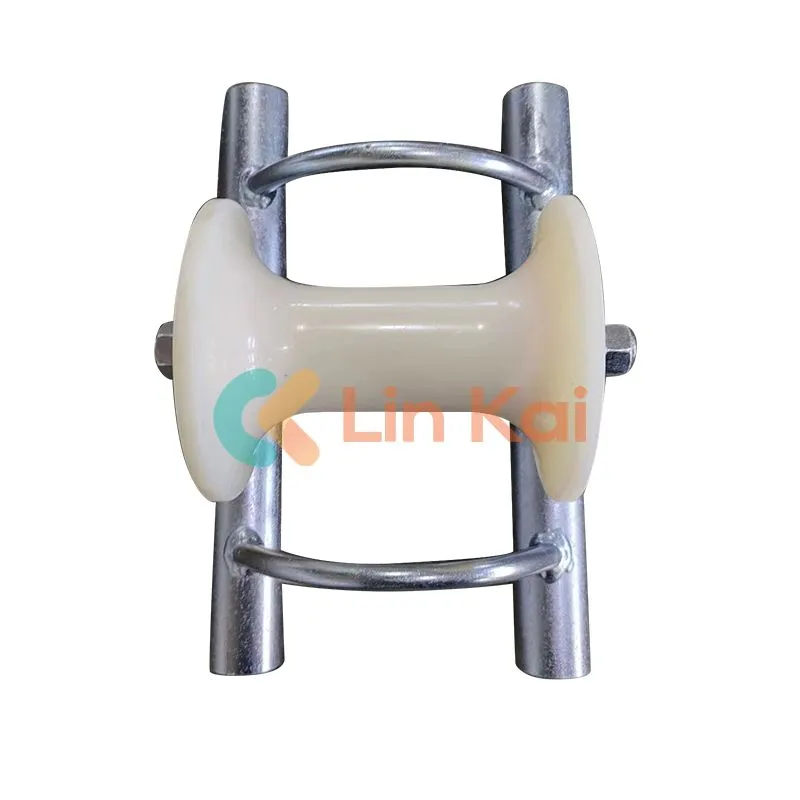

Nylon Sheaves Cable Pulling Roller

Nylon sheaves cable pulling roller can reduce the tension of the cable when it is bent or turned, and protect the cable assembly from excessive stretching damage.Nylon sheaves cable pulling roller's smooth surface reduces the friction between the cable and the pulley, prolongs the life of the cable and prevents wear.The Nylon sheaves cable pulling roller ensures the stability of the cable direction, prevents entanglement, adapts to a variety of environments, and ensures that the cable system is stable and reliable.

Send Inquiry

Product Description

Product description: A durable nylon sheaves cable pulling roller, sometimes referred to as a cable laying roller or a Electrical cable roller, is a vital component that serves a number of crucial purposes in cable installation systems. Below is a description of these features in detail:

1. Reduce Cable Tension: Reducing cable tension in locations where the cable route bends or changes direction is one of the main purposes of Nylon sheaves cable pulling roller.High quality Nylon sheaves cable pulling roller can lessen the strain on cable components and keep them from being harmed by excessive tension when they are supported properly.

2. Prevent Cable Wear: Smooth surfaces on Nylon sheaves cable pulling rollers aid to lower friction between the cable and the pulley, preventing surface wear and increasing the cable's lifespan.

3. Maintain Cable Routing: By keeping cables pointed in a certain direction and preventing them from getting tangled or out of position, cable guide rollers contribute to the orientation and general structure of the cable system, guaranteeing its stability and dependability.

4. Adapt to Different Environments: cable guide rollers are usually made of sturdy materials that allow them to function dependably in a variety of settings. These conditions can be difficult operating situations, such as indoor or outdoor locations, high or low temperatures, etc.

Straight Line Cable roller for laying underground cable

Item No.	Model	Working load (KN)	Diameter of Cable (mm)	Construction of Cable Roller	Weight (kg)
21171	SHL1	10	Φ150	Casting Aluminum Frame Aluminum Roller	5.4
21172	SHL1N	10	Φ150	Casting Aluminum Frame Nylon Roller	3.6
21181	SHL1B	10	Φ160	Steel Plate Base Aluminum Roller	5.5
21182	SHL1BN	10	Φ150	Steel Plate Base Nylon Roller	3.7
21183	SHL2BN	10	Φ160		5.5
21184	SHL3BN	10	Φ200		8.0
21191	SHL1G	10	Φ150	Steel Tubing Frame Aluminum Roller	5.1
21192	SHL1GN	10	Φ150	Steel Tubing Frame Nylon Roller	3.3
21193	SHL2GN	10	Φ160		5.7
21194	SHL3GN	10	Φ200		8.0
21201	SHLG1	10	Φ150	Steel Tubing Long Legs Aluminum Roller	9.4
21202	SHLG1N	10	Φ150	Steel Tubing Long Legs Nylon Roller	7.8

Note: The rollers are used for installation different underground power cable up to diameter Ø200mm, please choose the suitable roller according to your cable size.

All the sheaves are mounted on bearings. The frame is made of galvanized steel.

Cable Corner Rollers

Item No.	Model	Working load (KN)	Size of Cables (mm)	Weight (kg)
21211	SHL	8	≤ Ø80	5.5
21221	SHL2	10	≤ Ø150	12
21222	SHL2N	10	≤ Ø150	10
21223	SHL3	10	≤ Ø150	11
21224	SHL3N	10	≤ Ø150	9
