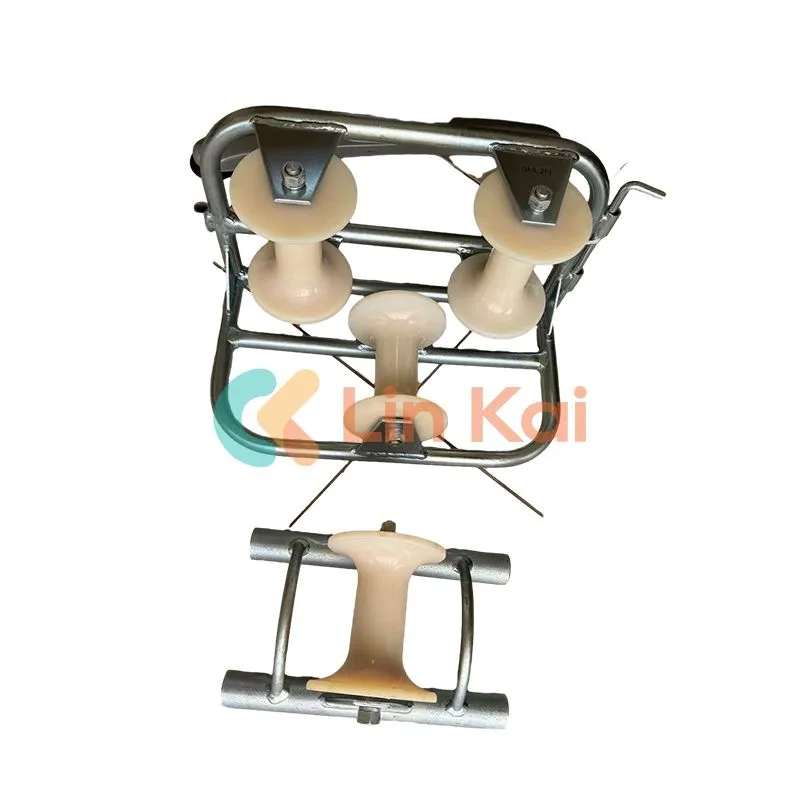

Cable Laying Roller

Cable laying rollers (also known as cable guide rollers or nylon wheel cable ground rollers) manufactured by Ningbo Lingkai, China are important equipment in the cable installation system. The Cable laying rollers can significantly reduce the tension of the cable in the bending or turning area and protect the cable assembly from damage. These Cable laying rollers are made of durable materials and can adapt to various environments, including indoor and outdoor, high and low temperature, and harsh operating conditions, ensuring the reliability and stability of cable laying.

Send Inquiry

Product Description

A Cable laying roller made in China Ningbo Lingkai Manufacture, also known as a cable guide roller or Nylon wheel cable ground roller, is an essential device used in cable installation systems that performs a variety of important functions. These functions are detailed below:

1. Reduce Cable Tension: One of the primary functions of Cable laying roller is to reduce cable tension in areas where there are bends or changes in direction in the cable route. When appropriately supported, Cable laying roller can help reduce stress on cable components, preventing them from being damaged due to excess tension.

2. Prevent Cable Wear: Cable laying roller is designed with smooth surfaces that help reduce friction between the cable and the roller, preventing surface wear and extending the lifespan of the cable.

3. Maintain Cable Routing: Cable laying roller helps maintain the orientation and overall structure of the cable system, ensuring its stability and reliability by keeping cables in a specific direction and preventing them from becoming tangled or out of place.

4. Adapt to Various Environments: Cable laying rollers are typically constructed using durable materials that enable them to run reliably in a wide range of environments. These environments can include indoor or outdoor settings, high temperature or low temperature conditions, and other harsh operating environments.

Straight Line Cable roller for laying underground cable

Item No.	Model	Working load (KN)	Diameter of Cable (mm)	Construction of Cable Roller	Weight (kg)
21171	SHL1	10	Φ150	Casting Aluminum Frame Aluminum Roller	5.4
21172	SHL1N	10	Φ150	Casting Aluminum Frame Nylon Roller	3.6
21181	SHL1B	10	Φ160	Steel Plate Base Aluminum Roller	5.5
21182	SHL1BN	10	Φ150	Steel Plate Base Nylon Roller	3.7
21183	SHL2BN	10	Φ160		5.5
21184	SHL3BN	10	Φ200		8.0
21191	SHL1G	10	Φ150	Steel Tubing Frame Aluminum Roller	5.1
21192	SHL1GN	10	Φ150	Steel Tubing Frame Nylon Roller	3.3
21193	SHL2GN	10	Φ160		5.7
21194	SHL3GN	10	Φ200		8.0
21201	SHLG1	10	Φ150	Steel Tubing Long Legs Aluminum Roller	9.4
21202	SHLG1N	10	Φ150	Steel Tubing Long Legs Nylon Roller	7.8

Note: The rollers are used for installation different underground power cable up to diameter Ø200mm, please choose the suitable roller according to your cable size.

All the sheaves are mounted on bearings. The frame is made of galvanized steel.

Cable Corner Rollers

Item No.	Model	Working load (KN)	Size of Cables (mm)	Weight (kg)
21211	SHL	8	≤ Ø80	5.5
21221	SHL2	10	≤ Ø150	12
21222	SHL2N	10	≤ Ø150	10
21223	SHL3	10	≤ Ø150	11
21224	SHL3N	10	≤ Ø150	9
