Cable Guide Roller

Cable guide rollers manufactured by Ningbo Linkai in China are suitable for cables with a diameter of less than 200 mm and are equipped with nylon and aluminum pulleys. The three-pulley Cable guide rollers designed for larger diameter cables can be customized for any steering angle, while cable entry protection rollers are provided to ensure safe cable entry and proper alignment. The D series cable entry protection rollers feature an enhanced length fixing mechanism, while the cable wellhead rollers are an important tool for protecting wellhead cables and pulling ropes.

Send Inquiry

Product Description

Cable guide roller features:

Our cable ground roller made in China Ningbo Lingkai Manufactures is ideal for cables with a diameter less than 200mm and comes equipped with both Nylon and Aluminum sheaves.

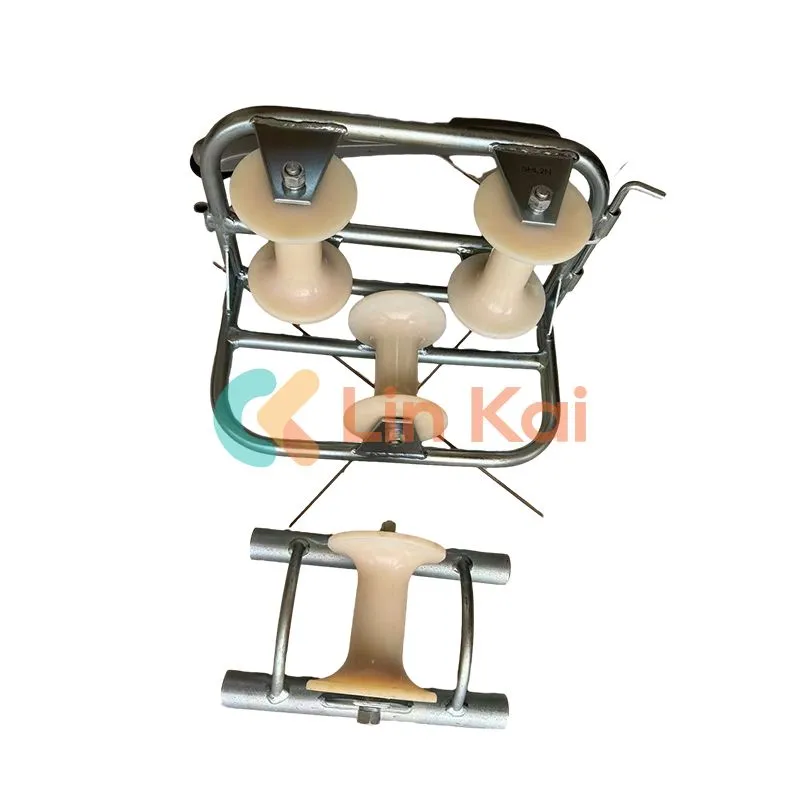

The triple sheave cable roller is perfect for larger diameter cables and can be customized to achieve any turning angle required.

Designed to protect cable extensions, our cable entrance protection roller can be placed at any angle inside a tube entrance. It has a sturdy and lockable zinc-coated steel surface and a single nylon sheave to keep cables properly aligned.

The D series cable entrance protection roller features an enhanced length fixed mechanism and a single nylon sheave.

Our cable pithead roller is an essential tool for protecting both cables and pulling ropes at the pithead.

Support and Services:

Our Electrical Cable Pulling Tools are designed to make cable installation easier and more efficient. We offer a range of tools including durable Cable guide roller, cable winch, cable socks, and conduit snakes. Our products are made from high-quality materials and are built to withstand the demands of the job site.

Our team of technical experts is available to provide support and answer any questions you may have about our products. We also offer services such as product training and on-site support to ensure that you are getting the most out of our tools.

Whether you are working on a small residential project or a large commercial installation, our Electrical Cable Pulling Tools are the perfect solution for your cable installation needs.

Cable Guide Roller for laying underground cable

Item No.	Model	Working load (KN)	Diameter of Cable (mm)	Construction of Cable Roller	Weight (kg)
21171	SHL1	10	Φ150	Casting Aluminum Frame Aluminum Roller	5.4
21172	SHL1N	10	Φ150	Casting Aluminum Frame Nylon Roller	3.6
21181	SHL1B	10	Φ160	Steel Plate Base Aluminum Roller	5.5
21182	SHL1BN	10	Φ150	Steel Plate Base Nylon Roller	3.7
21183	SHL2BN	10	Φ160		5.5
21184	SHL3BN	10	Φ200		8.0
21191	SHL1G	10	Φ150	Steel Tubing Frame Aluminum Roller	5.1
21192	SHL1GN	10	Φ150	Steel Tubing Frame Nylon Roller	3.3
21193	SHL2GN	10	Φ160		5.7
21194	SHL3GN	10	Φ200		8.0
21201	SHLG1	10	Φ150	Steel Tubing Long Legs Aluminum Roller	9.4
21202	SHLG1N	10	Φ150	Steel Tubing Long Legs Nylon Roller	7.8

Note: The Cable Guide Rollers are utilized for installing various subterranean power cables with a maximum diameter of Ø200mm; kindly select the appropriate roller based on the size of your cable.

Every sheaf is fixed on a bearing. The steel frame is galvanized.

Cable Corner Rollers

Item No.	Model	Working load (KN)	Size of Cables (mm)	Weight (kg)
21211	SHL	8	≤ Ø80	5.5
21221	SHL2	10	≤ Ø150	12
21222	SHL2N	10	≤ Ø150	10
21223	SHL3	10	≤ Ø150	11
21224	SHL3N	10	≤ Ø150	9
