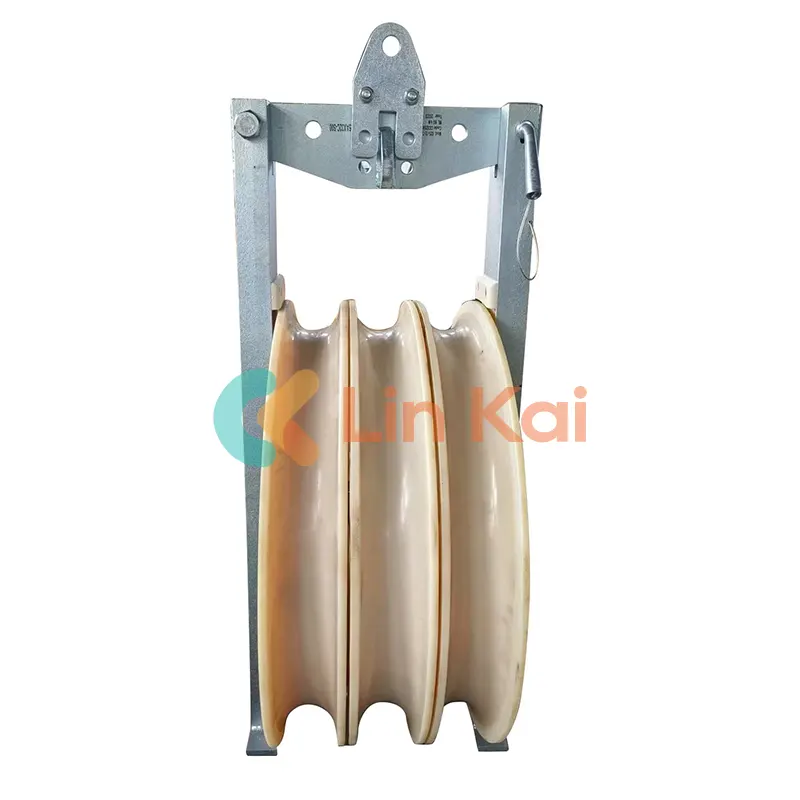

Stringing Blocks for four Conductors SHW660

Stringing Blocks for four Conductors SHW660 Made in China, with two wheel service, 110mm and 100mm in width, are manufactured in Ningbo, Lingkai, China. For the cheapest price, you might select this 660x110mm if your client wants to string ACSR 500-630. All of the raw materials used to make our MC sheaves are sourced from the USA and are more than 96% pure to increase strength.

Send Inquiry

Product Description

The stringing blocks for four conductors SHW660 are inexpensive and of high quality. To supply the Ningbo Lingkai factory, which is authorized by the Chinese government to handle large overhead transmission line projects, you must locate a terminal with a stable and long-term track record.

We have stringing Blocks for four Conductors SHW660 available. We would be happy to share with you all of the stringing Blocks for four Conductors SHW660 1 Years Warranty we have manufactured for clients abroad; some are well-known in China, while others are recognized brands like ZK and TESMEC.Additionally, as you are aware, in order to support the largest 1000KV and 800KV overhead line sites to the Chinese government, there is a huge bidder. We also need to pass testing conducted by more than three parties, so we are happy to provide you with the results of all of the testing we completed; we feel that they are more convincing than CE and ISO. China's Transmission project, after all, exceeds global needs by a large margin. Please feel free to speak with us.

Parameters of 660mm Large Diameter Stringing Blocks

Item Number	Model	Number of Sheave	Rated Load (kN)	Weight (kg)	Features
10121	SHD660	1	20	30	Rubber coated aluminum sheave
10122	SHS660	3	40	106	Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123	SHW660	5	60	150
10124	SHDN660	1	20	24	MC nylon sheave
10125	SHSLN660	3	40	92	Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126	SHWLN660	5	60	120
10127	SHSQN660	3	40	76	MC nylon sheave
10128	SHWQN660	5	60	110	MC nylon sheave
10129	SHQZ660	7	80	268	Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130	SHQ660A	7	75	190	Middle: cast steel sheave Conductor: MC nylon sheave
