916mm Large Diameter Stringing Blocks

916mm Large Diameter Stringing Blocks manufactured by Ningbo Lingkai are used for stringing conductors or OPGW on overhead transmission line. Ningbo Lingkai produces both aluminum alloy and nylon sheaves for stringing blocks, and the aluminum alloy sheaves can be lined with neoprene. To ensure the top safety level on job sites, all stringing block and pivoting array block models comply with ISO. We continuously test this equipment in order to certify quality and safety. Bulk 916mm Large Diameter Stringing Blocks, so we can do the best low-priced selling to clients.

Send Inquiry

Product Description

Ningbo Lingkai’s high-quality 916mm Large Diameter Stringing Blocks has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).

916mm Large Diameter Stringing Blocks Main Specifications

Item Number	Model	Number of Sheave	Rated Load (kN)	Weight (kg)	Feature

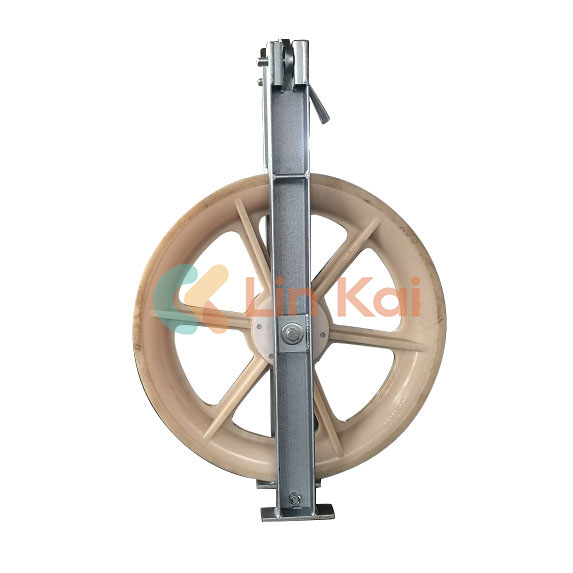

10151	SHDN916	1	50	51	MC nylon sheave

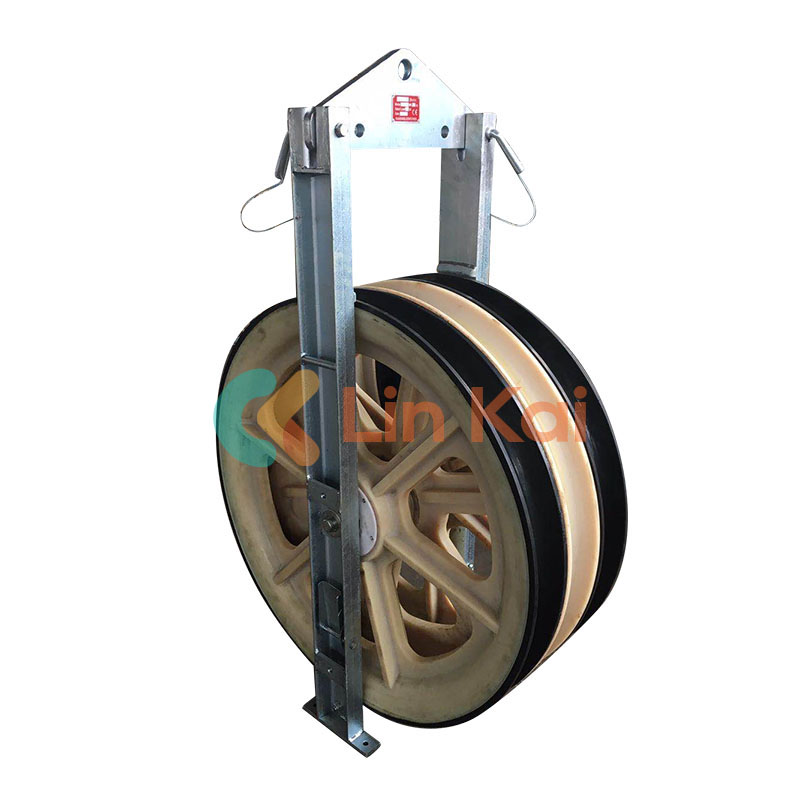

10152	SHSQN916	3	75	120

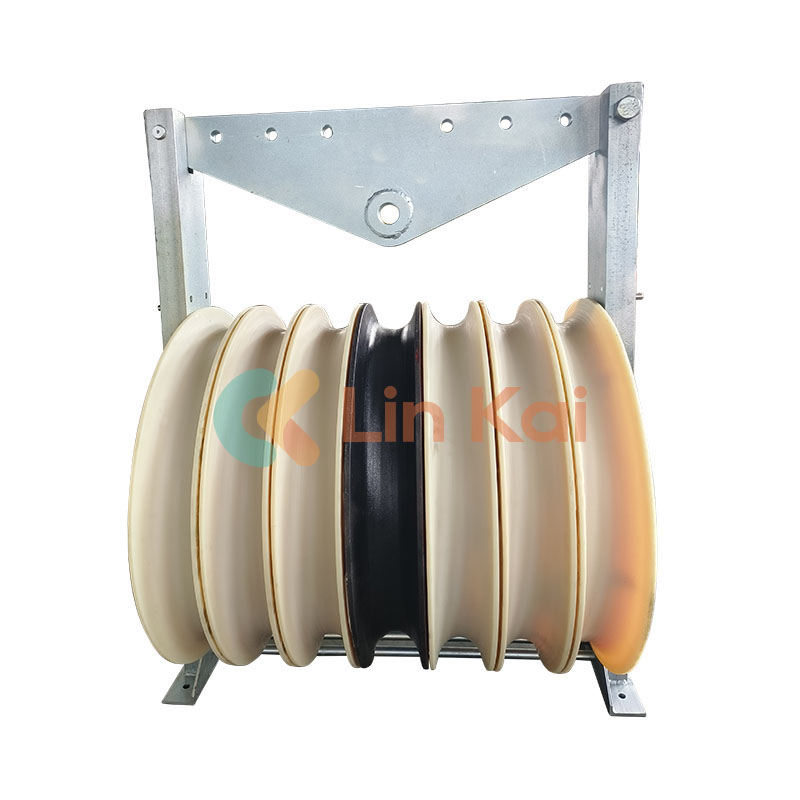

10153	SHWQN916	5	150	200

The middle sheave can be customized as cast steel sheave

Our Ningbo Lingkai 916mm Large Diameter Stringing Blocks supplier made in China, are the terminal biggest stringing pulley block manufacture. The Clevis fitting are optional, please specify when ordering. The customized blocks could be supplied on request too. These 916mm Large Diameter Stringing Blocks can string in 800KV - 1000KV overhead power lines. It is suitable to string ONE, TWO, THREE, FOUR or FIVE stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.

Ningbo Lingkai offers high-quality 916mm Large Diameter Stringing Blocks, suitable for conductors up to LGJ720. Specifically, this block accommodates conductor wires with aluminum cross-sections up to 720 square millimeters. The 916mm Large Diameter Stringing Blocks' block dimensions are Φ916×Φ800×110 mm (outside diameter × root diameter × sheave width).

Our Ningbo Lingkai 916mm Large Diameter Stringing Blocks, manufactured in China, are among the largest available for stringing applications. Clevis fittings are optional and should be specified when ordering. Customized blocks are also available upon request. These 916mm Large Diameter Stringing Blocks can be used for stringing 800KV to 1000KV overhead power lines and are suitable for stringing one to five stranded aluminum or ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove seamlessly.
