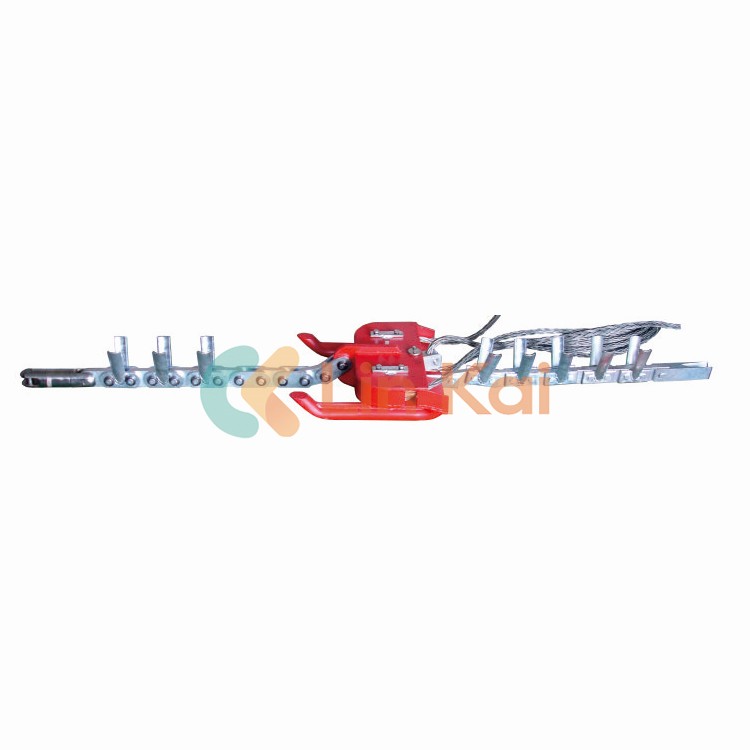

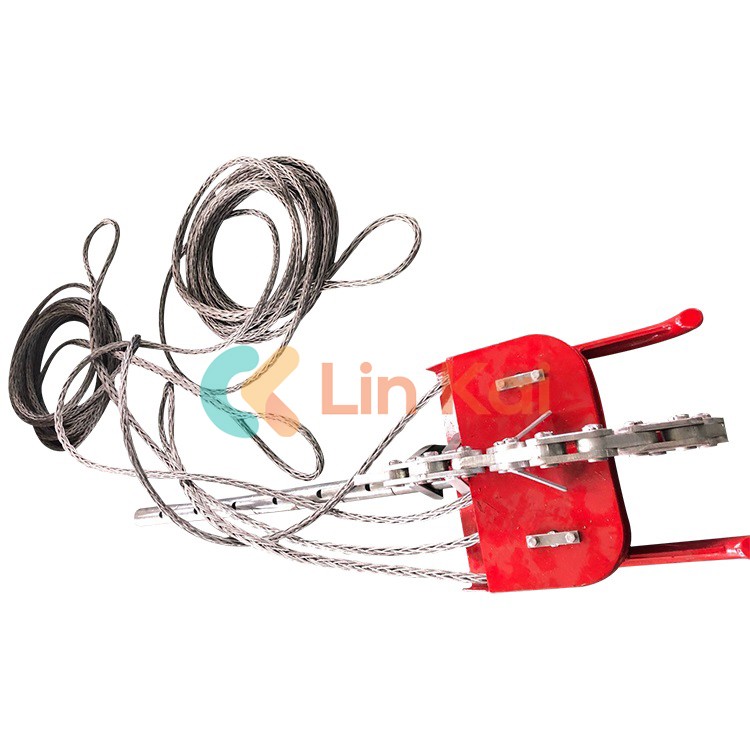

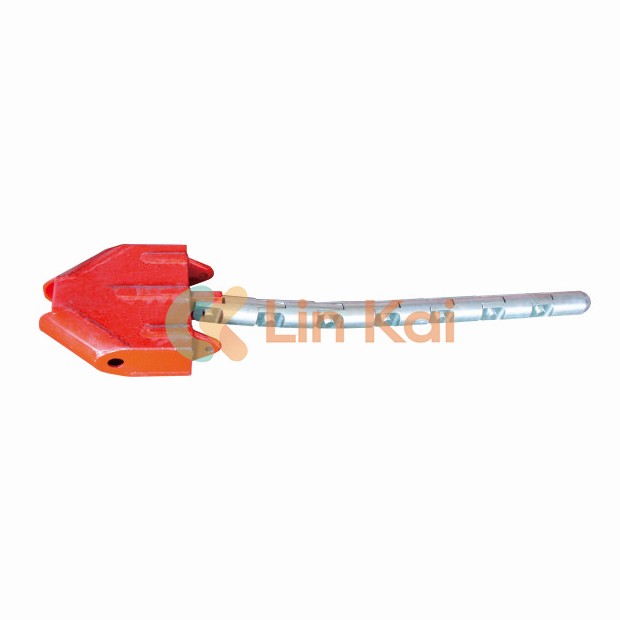

Running Boards for Three Bundle Conductor

Running Boards for Three Bundle Conductor made in China by Ningbo Lingkai can be customized by the stringing block size. This Running Boards for Three Bundle Conductor is stringing three bundle conductors in the overhead line stringing site. This equipment includes the necessary rope length and swivel joints. Special models with different characteristics are available. Please just ask us for this head board for three bundle conductors.

Send Inquiry

Product Description

Lingkai's bulk Running Boards for Three Bundle Conductor are used for stringing three bundle conductors to connect the pilot wire rope with the conductors.

The vertical heavy links hold the running board in a horizontal position for correct entrance into the stringing blocks. The balance pulley type is normally used for two bundled conductors that are pulled from the same bull wheels of the tensioner.

Running Boards for Three Bundle Conductor

Item number	Model	Rated load (kN)	Applicable stringing block sheave width(mm)	Weight (kg)	Steel rope length (m)
17228	SZ3A-10	100	100	114	1×30+1×15
17229	SZ3A-13	130	110	130	1×30+1×15
17230	SZ3A-18	180	110	142	1×30+1×15

Feature: It is designed to avoid torsion strain accumulation during line stringingNotes: Can be customized according to the specification of other stringing blocks.

4 Bundled Conductors Running Boards

Item No.	Model	Description	Rated Load (KN)	Weight (kg)	Marks
17231	SZ4A-13	Used for 660X100 stringing block	130	96	Balance pulley structure
17232	SZ4B-13	Used for 660X100 stringing block	130	65	Conductors are stringing separately from different bull wheels
17233	SZ4B-18	Used for 822X110 stringing block	180	110
17234	SZ4B-25	Used for 822X110 stringing block	250	110
17238	SZ4C-25	Used for 822X110 stringing block	250	110
17239	SZ4B-32	Used for 1024X125 stringing block	320	125
