Fixed Joints Wire Connector

During transmission line stringing operations, fixed joints wire connectors manufactured in China by Ningbo Lingkai are used to link anti-twisting steel wire rope or dyneema rope. The Bulk Fixed Joints Wire Connector is composed of premium steel that exhibits exceptional strength and compact design. Please feel free to ask us about the price of a fixed joint wire connector.

Send Inquiry

Product Description

Fixed Joints Wire Connector made in China by Ningbo Lingkai is also called the Pilot wire rope connector used for connection of pilot wire rope, anti-twisting steel rope or fiber pulling rope(nylon rope or Dyneema rope) in power line stringing operation.

Germany bearings are used inside of durable Fixed Joints Wire Connector that are manufactured in Lingkai Manufacture, China, and are 5 T and beyond. Its purpose is to strengthen the overhead line transmission's highly rated load. It is made of high-strength alloy steel, and a sleeve protects the connector's axle. The hydraulic puller tensioner's bull wheels may be passed through with braided steel rope that resists twisting thanks to the fixed joints.

Fixed Joints Wire Connector dada sheet.

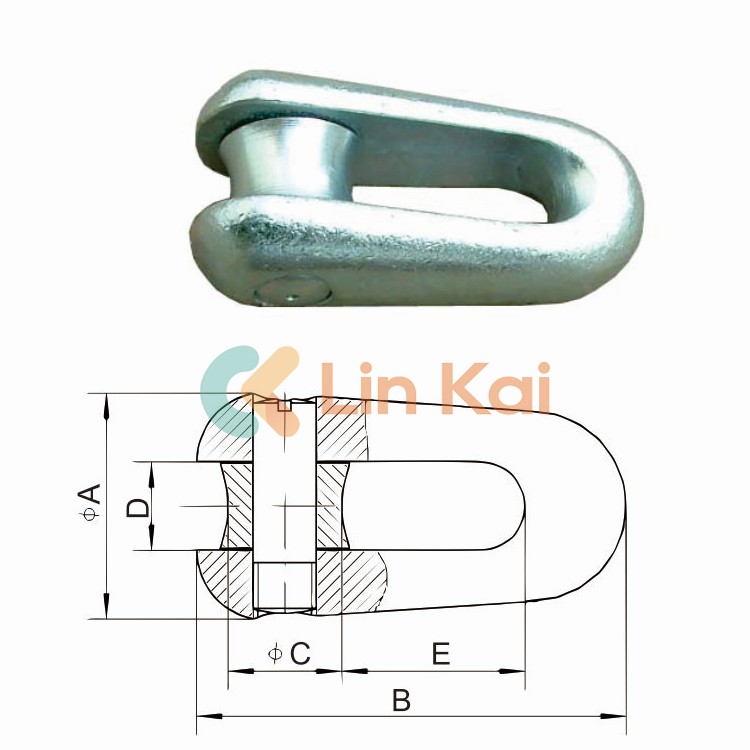

“U” Shape Pilot Wire Connectors

Item No.	Model	Dimension of Connector (mm)					Rated Load (KN)	Weight (kg)
Item No.	Model	A	B	C	D	E	Rated Load (KN)	Weight (kg)
17111	SLU-1	36	68	18	14	24	10	0.2
17112	SLU-3	37	76	20	17	28	30	0.2
17113	SLU-5	50	98	23	19	43	50	0.6
17114	SLU-8	58	120	28	25	52	80	1.1
17115	SLU-10	59	126	30	26	54	100	1.2
17116	SLU-13	61	134	32	27	56	130	1.2
17117	SLU-15	63	138	37	28	58	150	1.4
17118	SLU-25	80	178	44	35	72	250	3.0
17118A	SLU-28	80	178	44	35	72	280	3.0
17119	SLU-32	85	186	42	38	80	320	3.9
