Portable Short Circuit Grounding Pole

Buy the portable short circuit grounding pole from Ningbo Lingkai. We need to know the rod length, the section, the voltage operation site, and the copper wire length, and we can also customize the open grounding end clip size. Customized Earth Wire Safety Grounding Rod made by Ningbo Lingkai Manufacture, all the copper wire is from the China standard authorized Plant raw material

Send Inquiry

Product Description

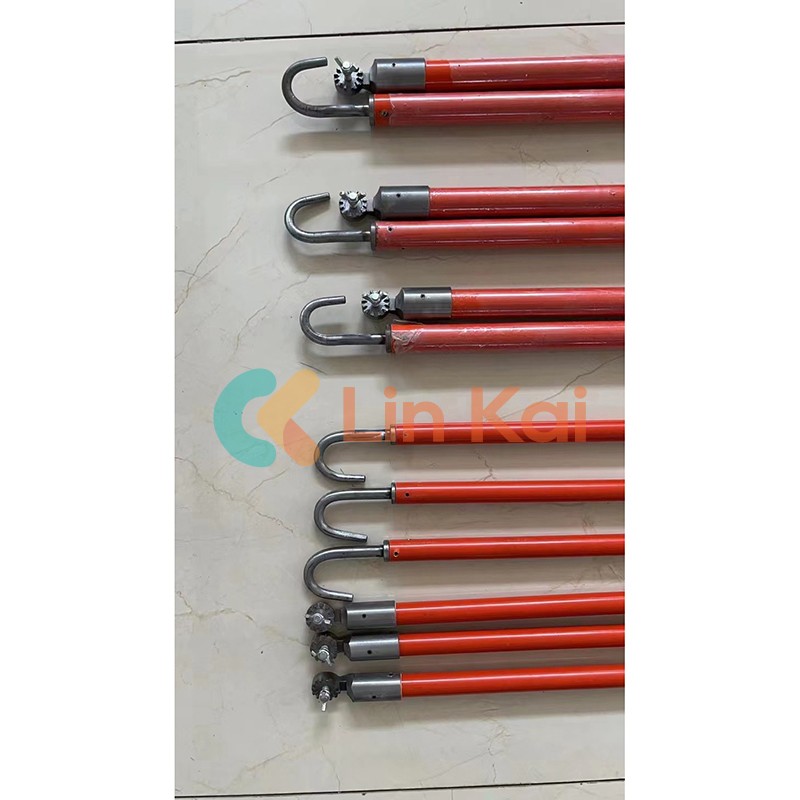

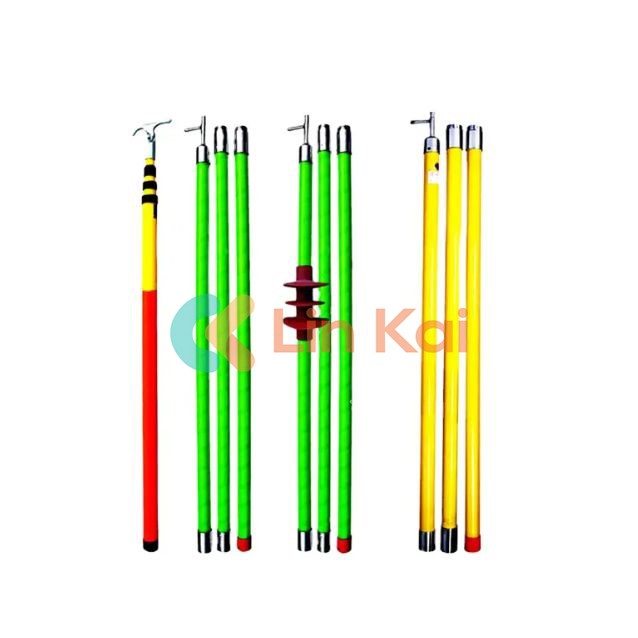

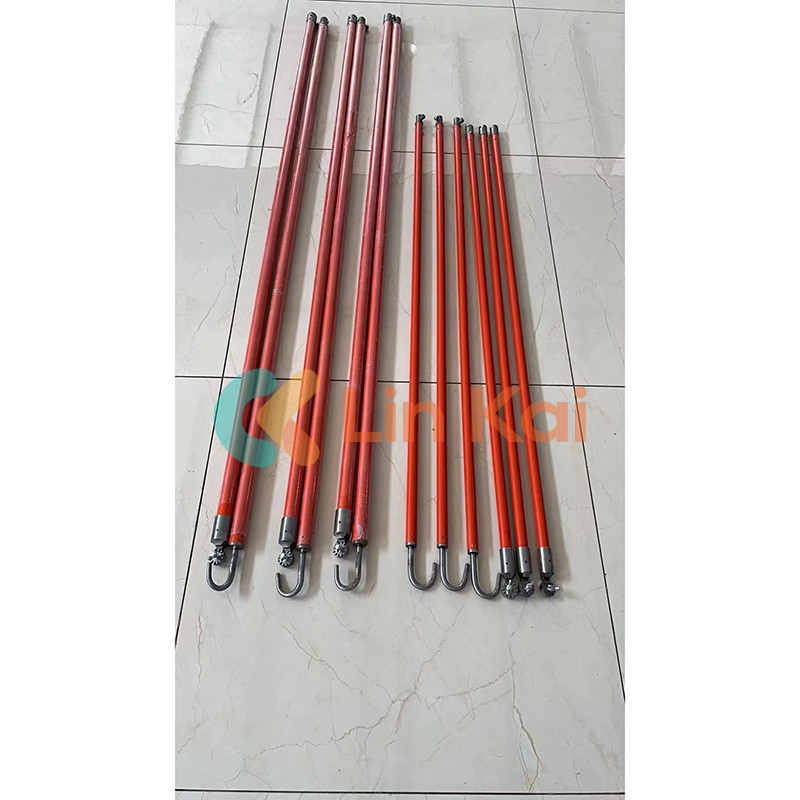

The Lingkai portable short circuit grounding pole has the Flat Clipper Jaws type and the Arc Opening type. It is desirable for the electric transmission line and suitable for the copper and aluminum row bus bar as well as the switch cabinet.

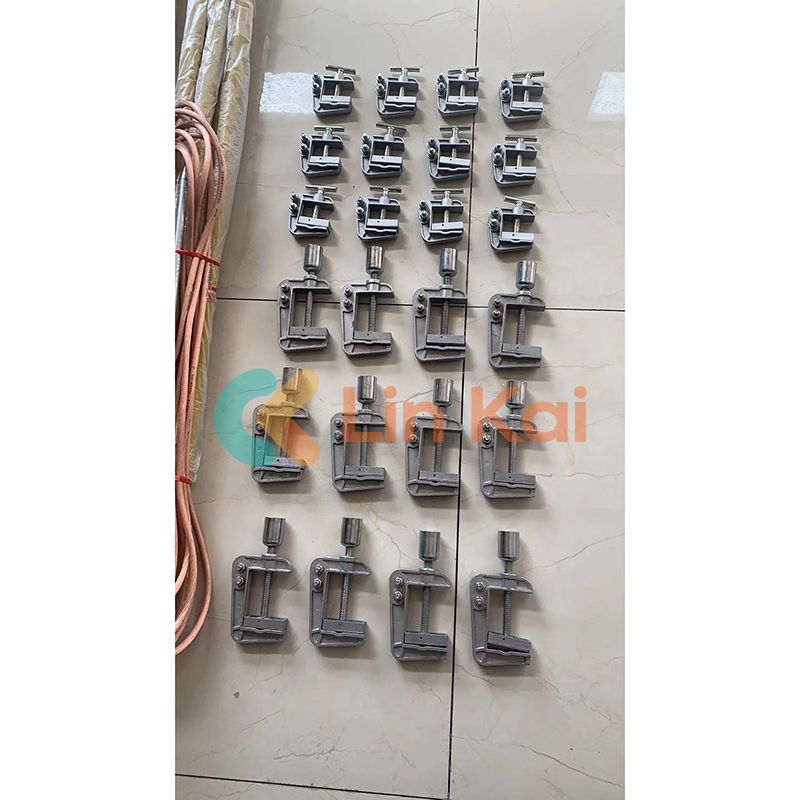

The portable short circuit grounding pole, the wire clamper, is made with aluminum alloy casting for high strength, good conductivity, and easy carry and transport. To supply the suitable best grounding lead to the client. Make sure to give us the 1. Voltage site operation 2 rod length, 3 rod section, 4 grounding end clip open size, 5 copper size, 6 copper length These can all be customized.

Voltage class	Ground soft copper wire		Length of Ground Operation Rod (mm)
	(mm2)	(m)	Length of Ground Operation Rod (mm)
	(mm2)	(m)	Insulating	Handheld	Total length
10KV	25	13+7~1.53+20	700	300	1000
35KV	25	1.5*3+18	900	600	1500
68KV	25	1.5*3+20	1000	600	1600
110KV	25,35	9*3	1300	700	2000
110KV	25,35	2*3+20	1300	700	2000
220KV	25,35	9*3	2100	900	3000
220KV	25,35	3*3+25	2100	900	3000
330KV	35,50	123 43+25	3000	1100	4100
500KV	35,50	133~203	4100	1400	5500
220-500KV Overhead ground wire	25	13+7~1.53+20	700	300	1000
High pressure test equipment	35,50	53~103	700	300	1000

The rated value of the copper wire per meter:

Sectional area(mm)	10	16	25	35	50	70	95	120
Wire diameter(mm)	4.2	5.7	7.5	8.78	11	12	16	17
Sheath diameter(MΩ)	7.3	7.8	9.6	11.2	12.6	16.5	21	22
Resistance value(A)	1.98	1.24	0.79	0.56	0.4	0.28	0.21	0.16
Safety current	90	100	123	150	210	238	300	300

Grounding Pole (Grounding End Clip)

This grounding pole comes with the item number of 23051, and the grounding end clip has the item number of 23055. They can be used in cooperation with the portable short circuit grounding pole.

Description

Item Number	Name	Uses
23051	grounding pole	They can be used in cooperation with the portable short circuit grounding pole.
23055	grounding end clip
23056	Grounding end circle	It can be customized
