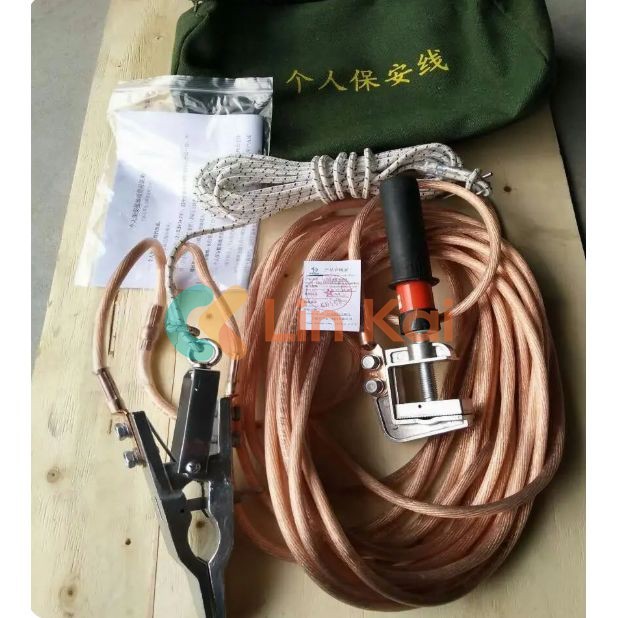

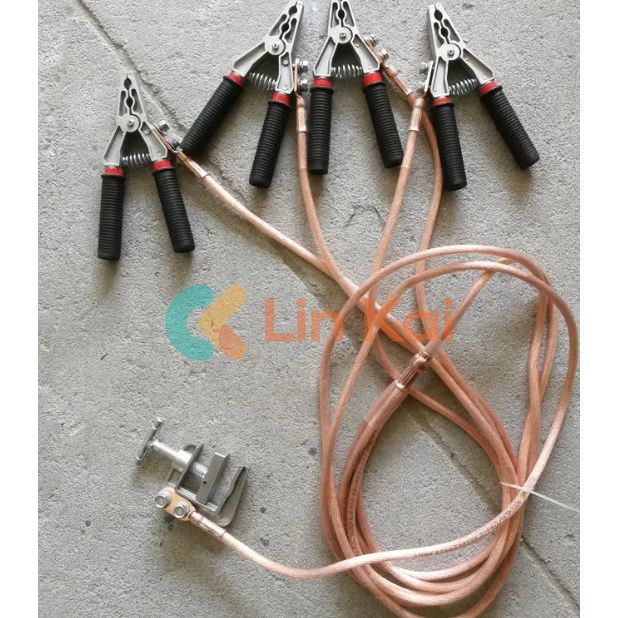

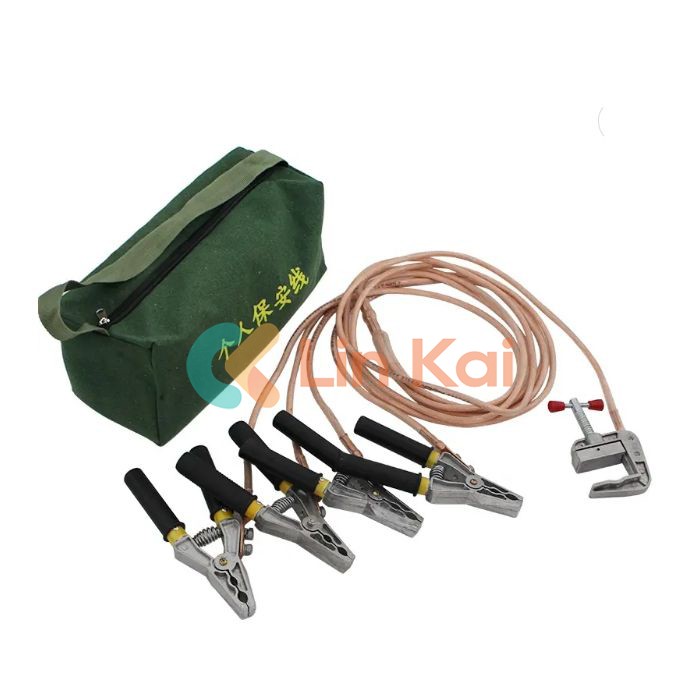

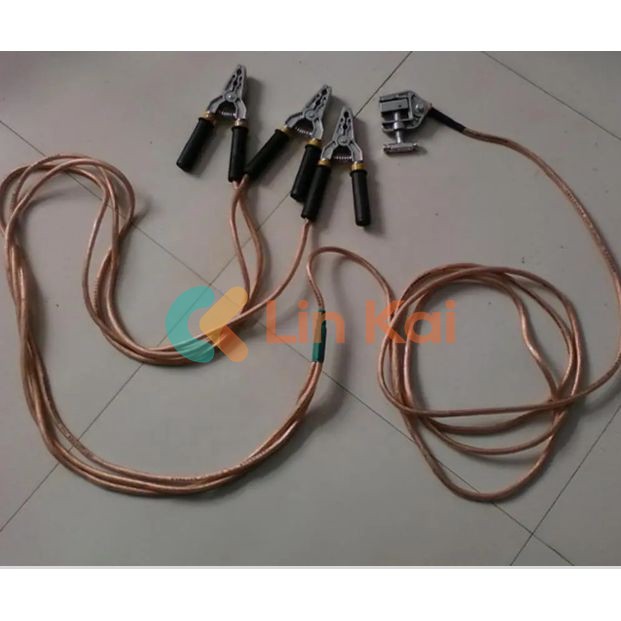

Personal Safety Grounding Wire

Ningbo Lingkai Manufacture's Personal Safety Grounding wire is used to prevent workers from receiving electric shock when they work on the blackout line, to serve as an auxiliary safeguard to prevent the unexpected electric shock, and finally to protect the work lift safety. This model can be customized, as can the wire length. If it is four conductors, then buy a four-phase single-phase set.

Send Inquiry

Product Description

Personal Safety Grounding Wire, made in China by Ningbo Lingkai, is highly demanded to comply with ISO standards in China.

This personal safety grounding wire serves to protect operators from electric shock during the operation of the power outage line. When applied to power distribution networks, our product is able to prevent the invasion of unexpected power and ensure the security of operators. It is available in a variety of voltage classes, but this security wire is not allowed to replace the grounding wire for electrical inspection.

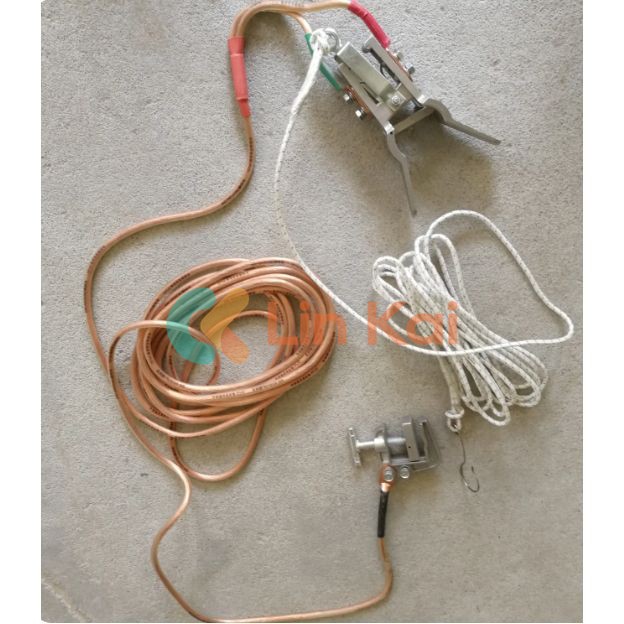

With our Personal Safety Grounding Wire, there is no need to hold the clip to clamp the conductor by hand. Actually, a nylon rope can be used to make the clip hang down to the conductor. Then, the conductor can be clamped automatically. It is also convenient to dismantle our personal safety grounding wire.

Item number	Model	Wire Section(MM)	Clip Quantity	Wire Length(M)
23021D	Three-phase	16	3+1	3*0.5+2
23021A		16	4+1	4*0.5+2
23021B		16		4*1+3
23022A		25		4*1+3
23022B		25		4*1+5
23031A	Single-phase	25	1+1	2*0.3+4.7
23031B		25		2*0.3+7.7
23031C		50		2*0.5+7.5

Our grounding and short circuit wire serve to make the temporary short circuit or grounding occur when applied to the circuit or equipment without electricity. Our product is able to avoid the invasion of unexpected power as well as the damage to both operators and devices. In the contract, single phase or triple phase should be indicated. Also, the length must be clearly noted.

Specifications

Item Number	Section Area of Copper Wire (mm2)	Thickness of Protective Layer (mm)	Remark
23041	16	1.0	Single phase or triple phase
23042	25	1.0
23043	35	1.0
23044	50	1.2
