Opgw Cable Block

This in stock Opgw cable block from Ningbo Lingkai is a straight-line pass type product. It is capable of stringing a variety of fiber optic cables. Ningbo Lingkai's product uses a nylon sheave with a diameter of 660mm. The bottom of the Opgw Cable Block wheel groove has a tiny cable slot designed to protect the Opgw wires. To find out the price of the Opgw Cable Block Made in China, please contact us at any moment 24 hours a day.

Send Inquiry

Product Description

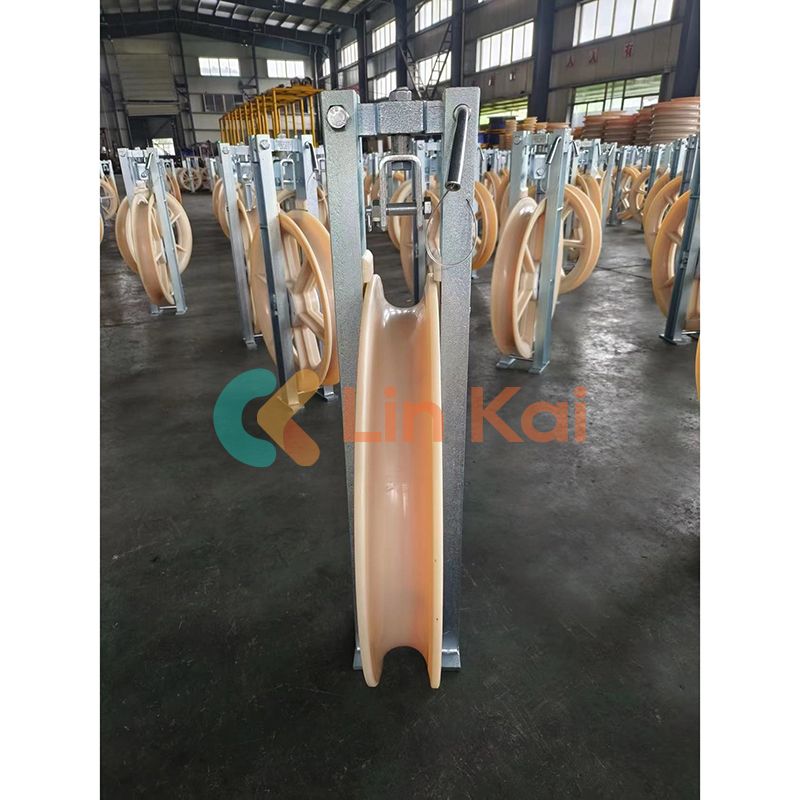

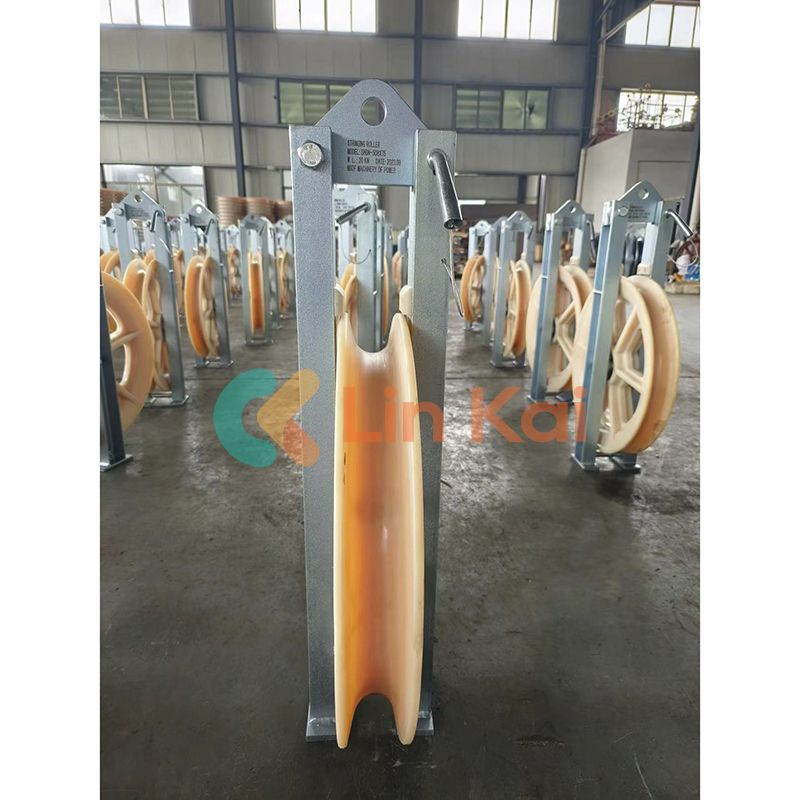

Ningbo Lingkai's sturdy Opgw cable block 1 Years Warranty, also known as OPGW stringing pulley blocks, is used to thread OPGW or ADSS cable on overhead transmission lines. The sheaves are composed of MC nylon or aluminum alloy. The pulley's diameter is large enough to hang OPGW cable while meeting the bend radius requirement. It can be fitted with grounding rollers.

Opgw Cable Block , and Stringing Block for OPGW cable

Item No.: 20131

Application: It is used to support the OPGW cable on the tangent structure in stringing operation.

Features: Φ660mm diameter nylon sheave, with contoured groove bottom .

Weight (kg): 32.

The Opgw cable block Made in China may be used to string both normal aluminum and ASCR cables, as well as tangent constructions. Compression sleeves, swivel connections, and pulling rope connectors may all fit in the groove. The sheave is manufactured from high-strength nylon. The large 660mm, 822mm, 916mm, and 1040mm nylon sheaves may be lined with neoprene.

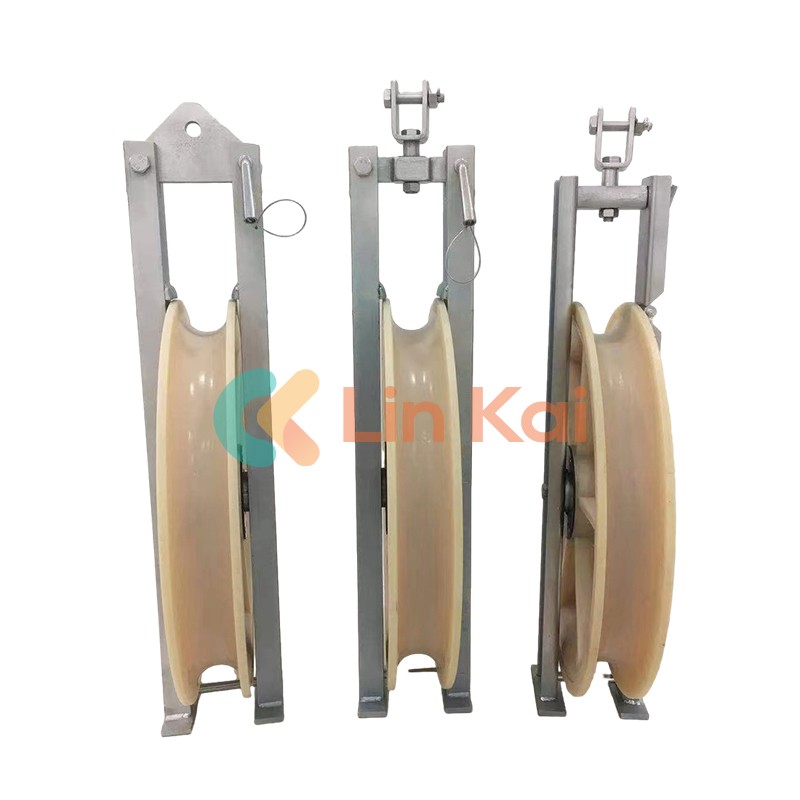

Single sheave Nylon Opgw Cable Block

Item No.	Model	ACSR Size Range (mm²)	Working Load (KN)	Weight (kg)	Material of Sheave
10191	SHDN-120x30	25-70	5	1.5	Nylon
10192	SHDN-160x40	70-95	10	2.4
10193	SHDN-200x40	95-120	15	2.6
10194	SHDN-200x60	120-150	15	3.1
10195	SHDN-250x40	120-150	20	3.7
10196	SHDN-250x60	150-180	20	3.9
10197	SHDN-270x60	180-240	20	4.4
10198	SHDN-320x60	240-300	20	7.5
10199	SHDN-400x80	300-400	20	8
10104	SHDN508	300-400	20	16	Nylon, optional can be lined with neoprene
10124	SHDN660	400-500	20	24
10131	SHDN750	500-600	30	32
10141	SHDN822	600-700	30	38
10151	SHDN916	700-800	50	51
10165	SHDN1040	800-900	50	60
