Hoisting Tackle

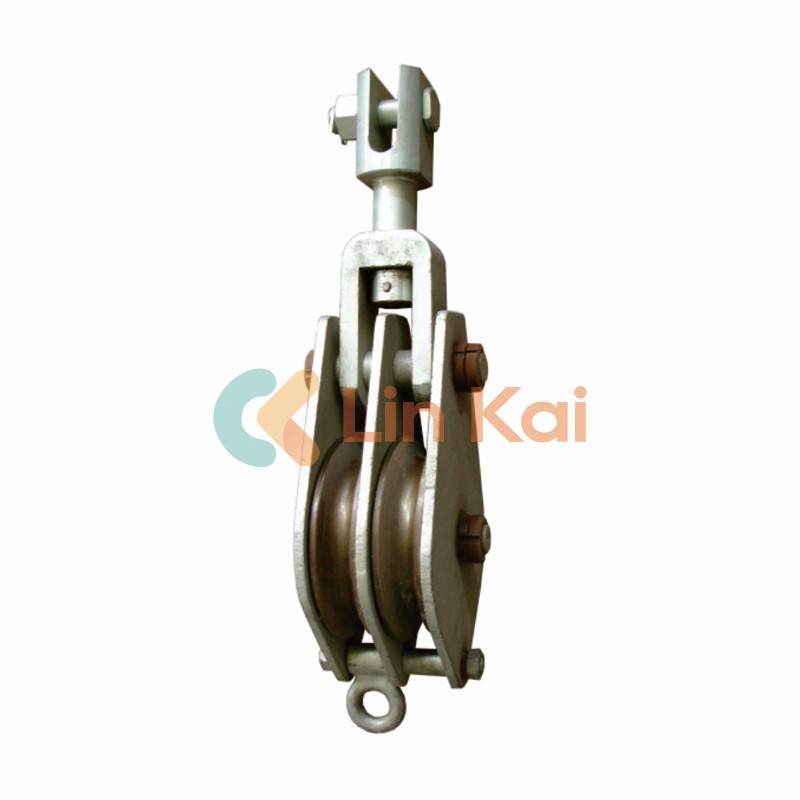

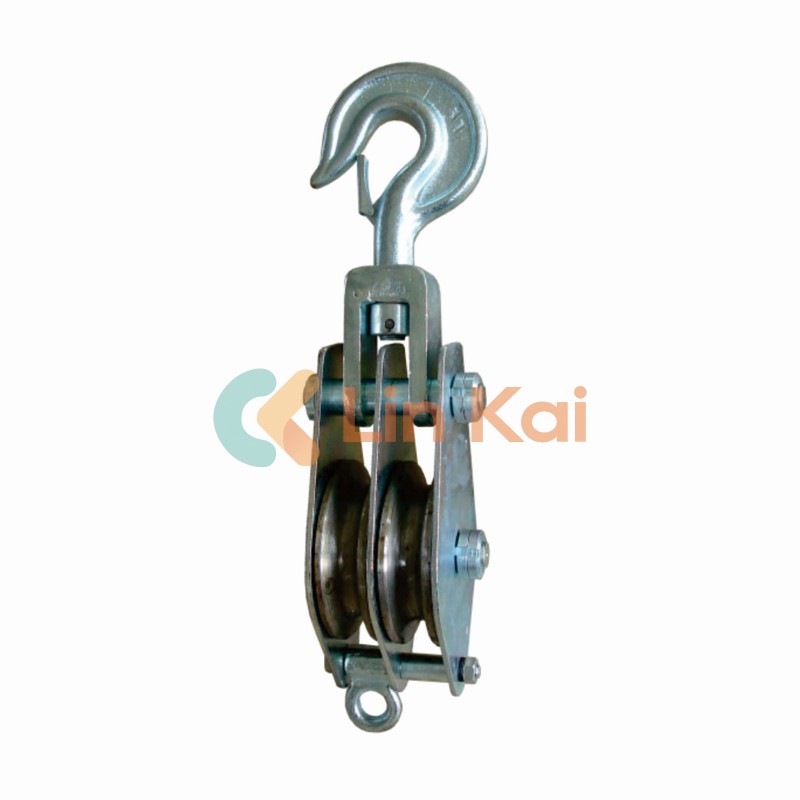

Lingkai's Quality Hoisting tackle Made in China is a hoist equipment used for erecting poles, towers, and line construction. The rated load ranges from 10 to 200 KN, and the number of sheaves is 1, 3, 2, 4. Lingkai Durable hoisting tackle manufacturing can provide clients with three varieties of hoisting points: hook, round eye, and clevis style. If you weigh more than 80 KN, we recommend purchasing the eye round and clevis type; it will make the procedure much safer.

Send Inquiry

Product Description

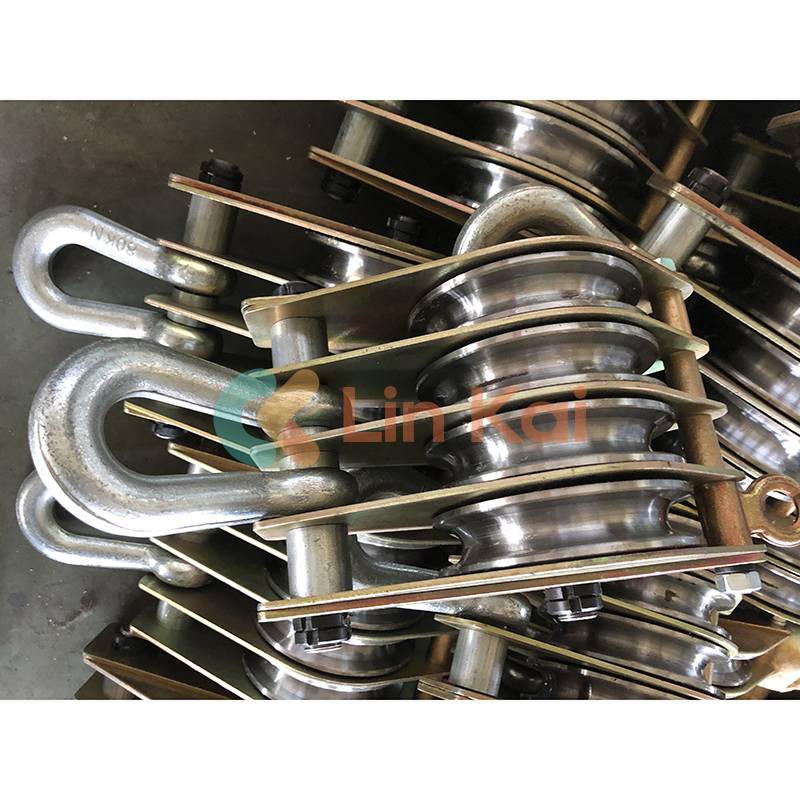

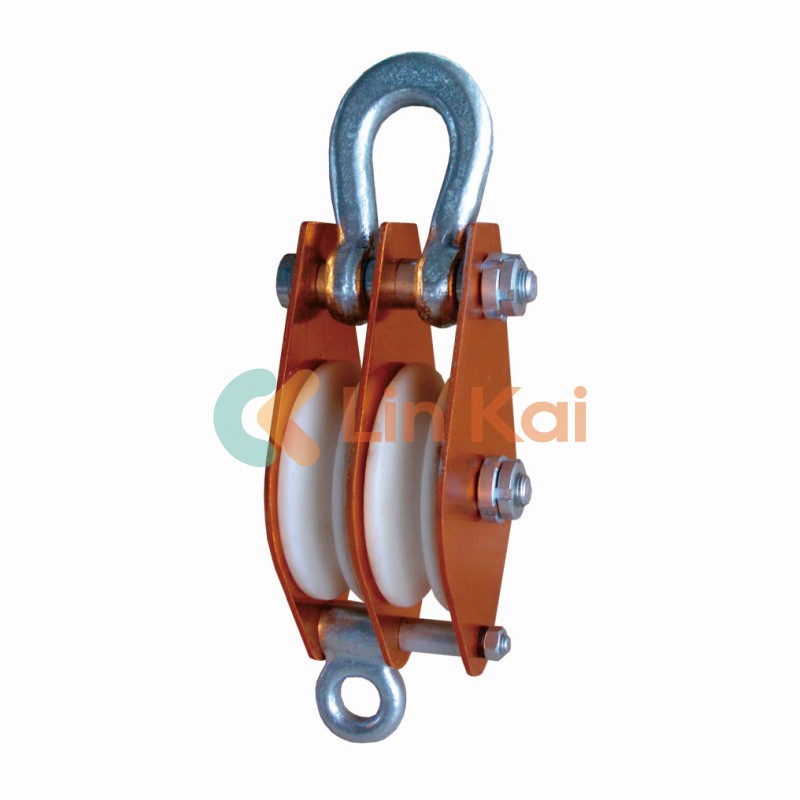

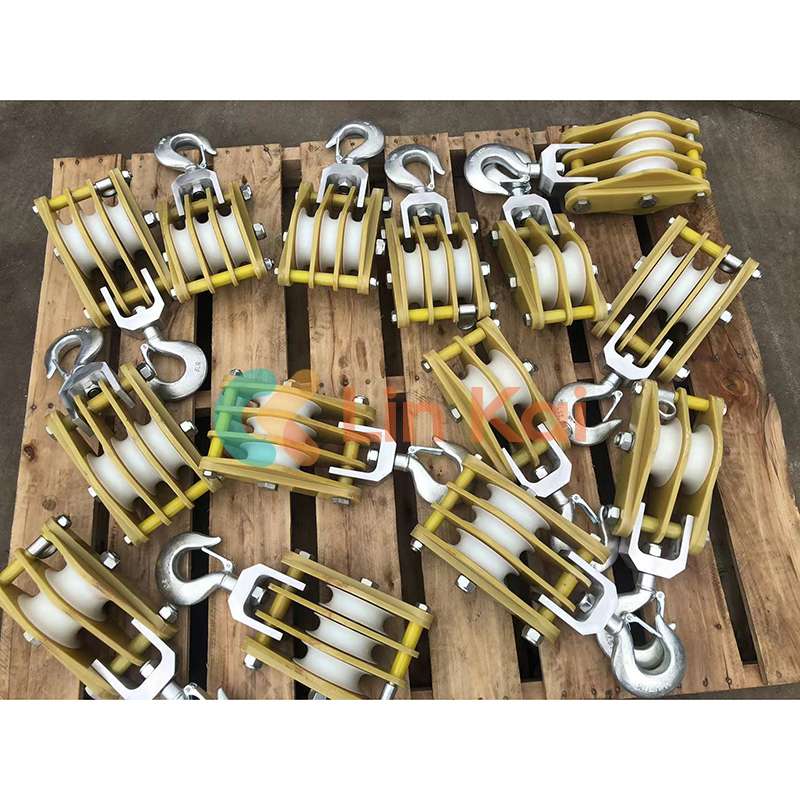

Ningbo Lingkai manufactures hoisting tackle in China with an iron steel pulley, a nylon pulley, an aluminum pulley, and an insulated nylon pulley. The tower erection site is responsible for allowing the pulling steel wire or nylon rope to pass through the groove when elevating the poles. There are three different hanging styles; please specify while placing your purchase. In the meanwhile, we'll provide you with the greatest technical advise.

Hoisting tackle data sheet

Item number	Model	Number of sheaves	Rated load （kN）	Roller Dia width (mm)	MAX. Rope Diameter （mm）	Weight (kg)
11181	QH1x1	1	10	Φ100×31	Φ8	3
11182	QH1x2	2		Φ80×27	Φ6	3
11183	QH1x3	3		Φ80×27	Φ6	4
11191	QH2x1	1	20	Φ120×35	Φ10	4
11192	QH2x2	2		Φ100×31	Φ8	5
11193	QH2x3	3		Φ100×31	Φ8	6
11201	QH3x1	1	30	Φ150×39	Φ11	6.5
11202	QH3x2	2		Φ120×35	Φ10	5
11203	QH3x3	3		Φ100×31	Φ8	6
11211	QH5x1	1	50	Φ166×40	Φ13	9.0
1 11212	QH5x2	2		Φ150×39	Φ11	13
11213	QH5x3	3		Φ120×35	Φ10	11
11221	QH8x1	1	80	Φ205×50	Φ18	20
11222	QH8x2	2	80	Φ166×40	Φ13	19
