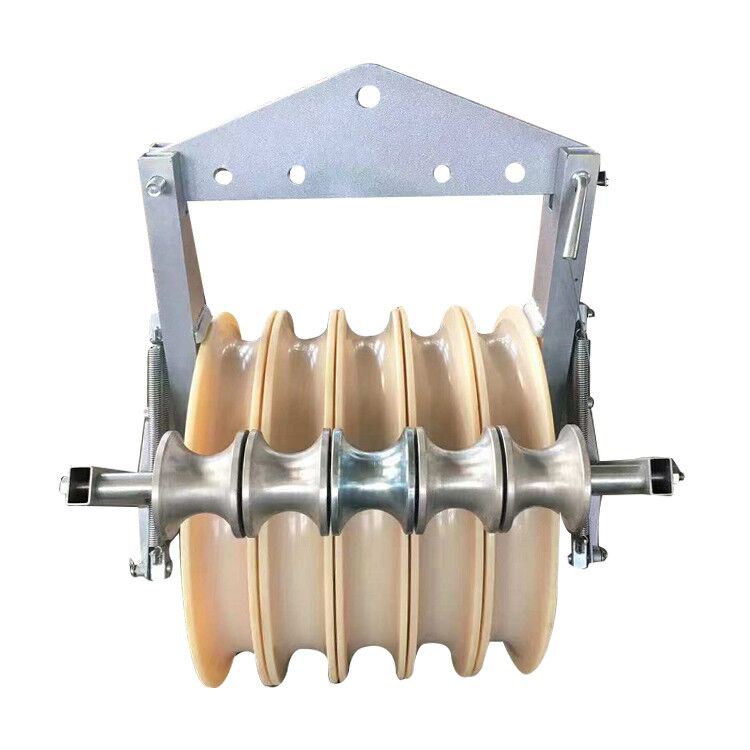

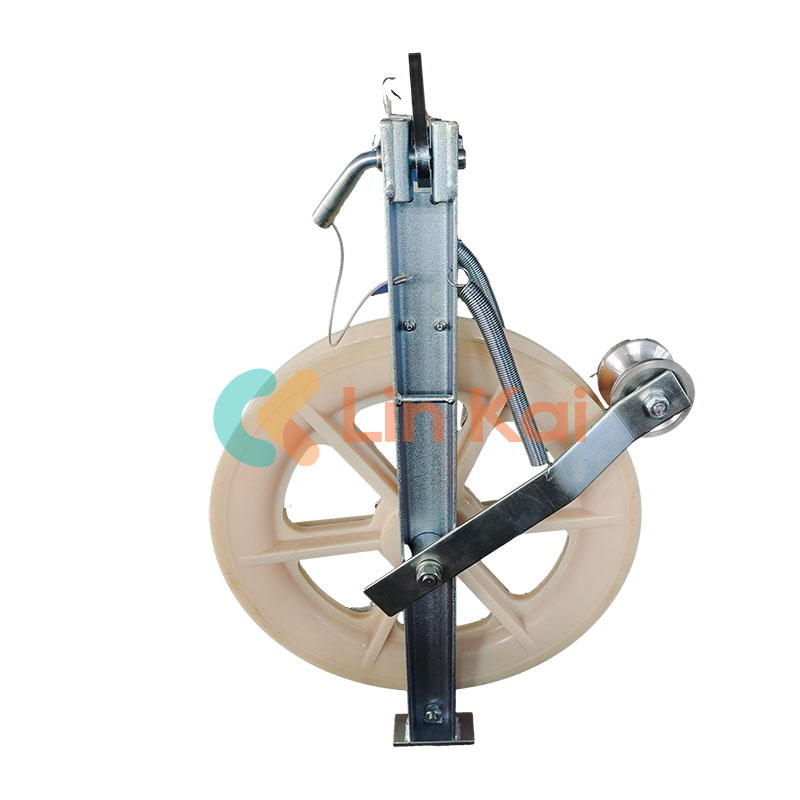

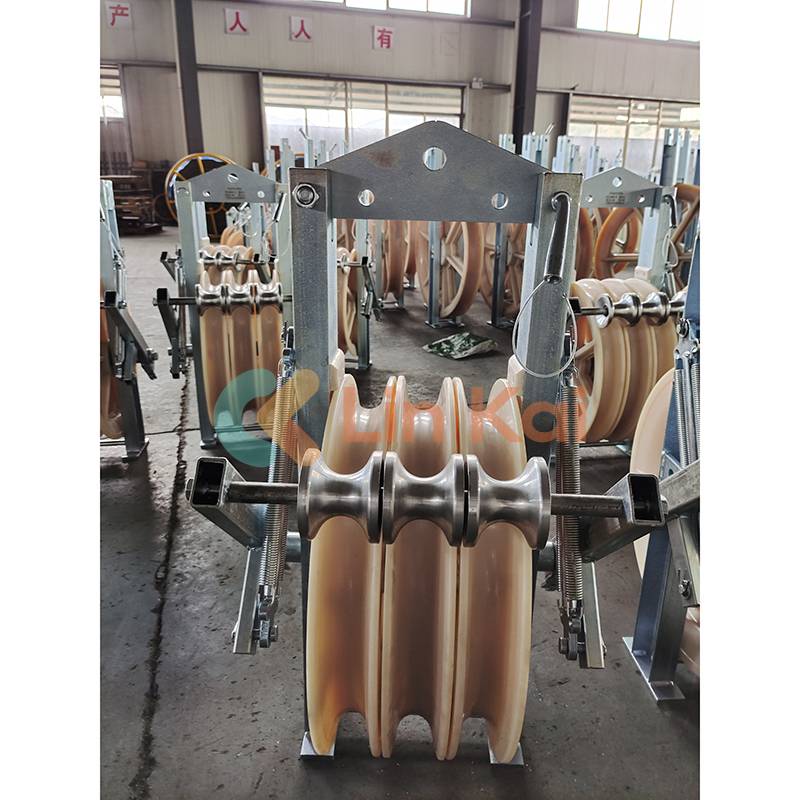

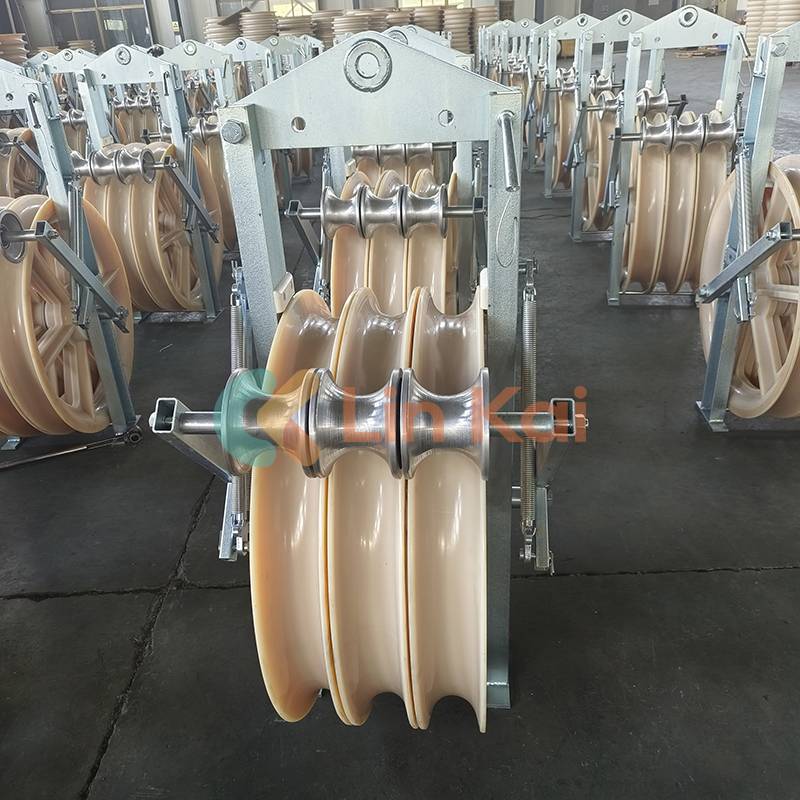

Grounding Roller Stringing Blocks

Ningbo Lingkai manufactures Durable Grounding Roller Stringing Blocks with the earth device fitted. It is available in single bundle and helicopter wheel configurations. When used in conductor stringing construction, the grounding roller stringing block discharges the induced current of the conducting wire into the ground. You are welcome to question us about the price of Grounding Roller Stringing Blocks. This grounding device met with CE and ISO standards.

Send Inquiry

Product Description

Ningbo Lingkai's Large diameter Quality grounding roller stringing blocks in bulk, it is applied to release the induced current on the line for stinging construction. The other parameter see “large diameter stringing block”

Earth devices can be supplied on single, bundle and helicopter wheels manufactured by China Lingkai. Grounding devices complies with ISO and CE.

Our grounding roller stringing blocks 1 Years Warranty in transmission line.

Pulleys are assembled with new generation high tensile nylon wheels.

This material optimally balances lightweight, performance, and affordability. Groove is designed to meet ISO standards for the global market. All wheels are placed on ball bearings.

are completely interchangeable. The frame is built of galvanized steel. The frame and wheel may be simply separated for maintenance and customization. No space between wheels improves handling while lowering size and weight.

Grounding roller stringing blocks data.

Item number	Model	Outside Diameter Of Sheave(MM)	Sheaves
10301	SHDN508D	Φ508×75 (508*100)	1
10302	SHSN508D		3
10303	SHWN508D		5
10311	SHDN660D	Φ660×100 (660×110)	1
10312	SHSN660D		3
10313	SHWN660D		5
10316-1	SHDN822D	Φ822×110	1
10316-3	SHSN822D		3
10316-5	SHWN660D		5
10316	SHDN916D	Φ916X110	1
10317	SHSN916D		3
10318	SHWN916D		5

Our 660mm Grounding Roller Stringing Blocks are designed for conductors up to LGJ500, with a maximum aluminum cross-section of 500 square millimeters.

The dimensions of the Grounding Roller Stringing Blocks are Φ660×Φ560×100 mm (outside diameter × root diameter × sheave width). The center steel sheave of both the 10122 and 10123 variants measures 90mm wide. We also provide an alternative middle nylon sheave with a width of 90mm.
