Conductor Earth Grounding Blocks

To purchase discounted Conductor Earth Grounding Blocks 1 Years Warranty produced in China, please contact Ningbo Lingkai conductor stringing pulleys manufacturer. We have more than 20 years of expertise and have created a full line of Stringing Blocks. This line comprises conventional, detachable, tandem, and helicopter stringing blocks. The grounding wire length may be adjusted.

Send Inquiry

Product Description

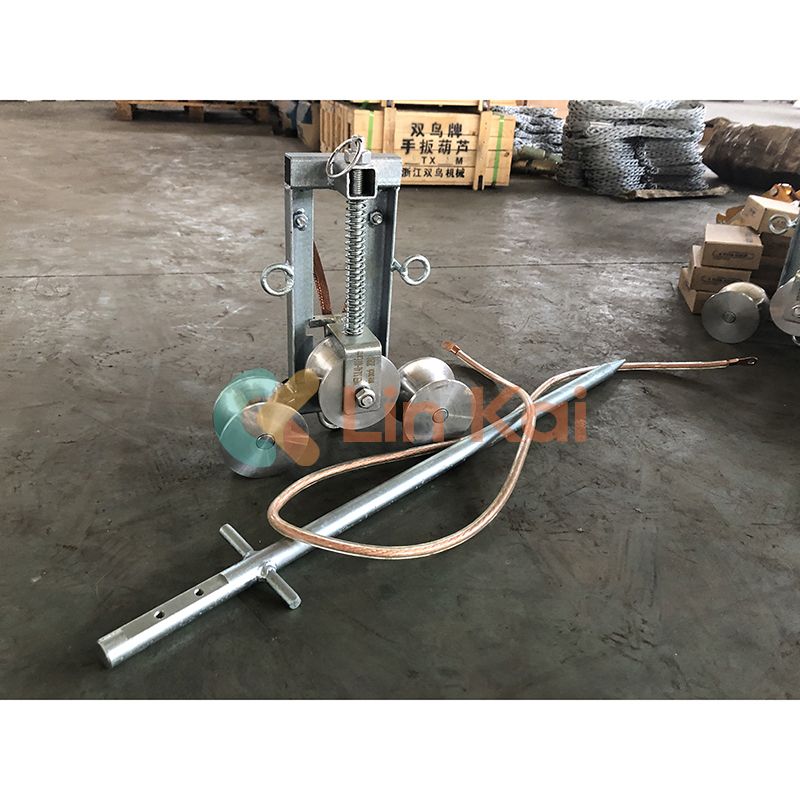

Ningbo Lingkai's high-quality conductor earth grounding blocks are used to eliminate induced static electricity in conductor or grounding wire spread when tensioning erect wires. And the grounding wire pile provide additionally.

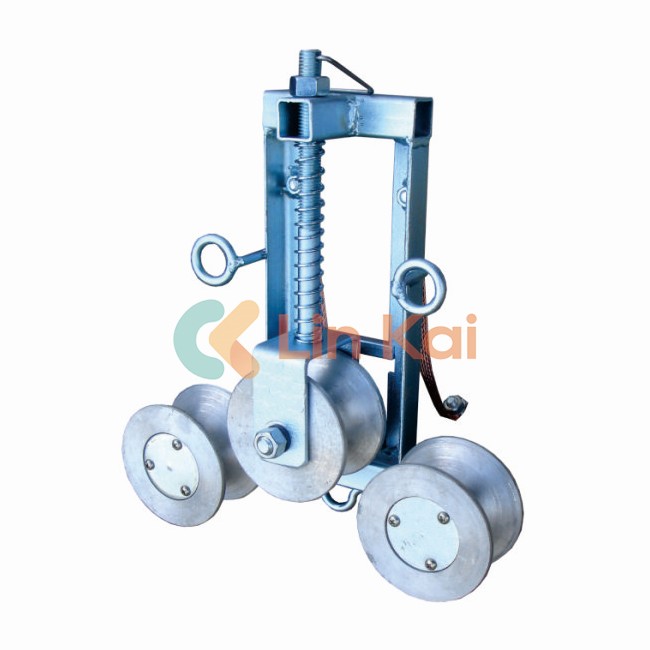

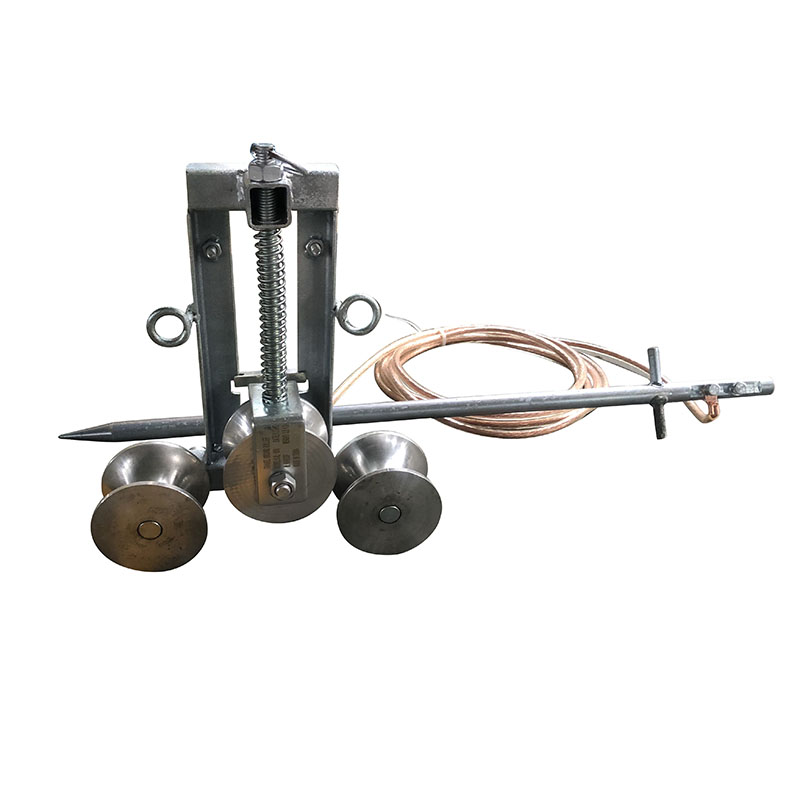

Durable Conductor earth grounding blocks can reduce induced voltage in the conductor and grounding wire when the wires are released. They are attached to the outlet side of tensioners or the inlet side of pullers and pulled by two stay wires. The triple sheave system is automatically compressed. The maximum permitted current is 100A, and the time electrified is 0.1 seconds. We propose that the mating conductor have a section of 25 square mm.

Item number	Model	Bottom Diameter （mm）	Applicable Wire	Max Current （A）	Sheave Material	Weight (kg)
12101	SJL38-100	Φ46	Φ38 Conductor	100	Casting steel	8.9
12101A	SJL48-100	Φ56	Φ48 Conductor	100	Casting steel	10.0
12102	SJT38-100	Φ46	Φ38 Steel wire rope Grounding Wire	100	Casting steel	11.0

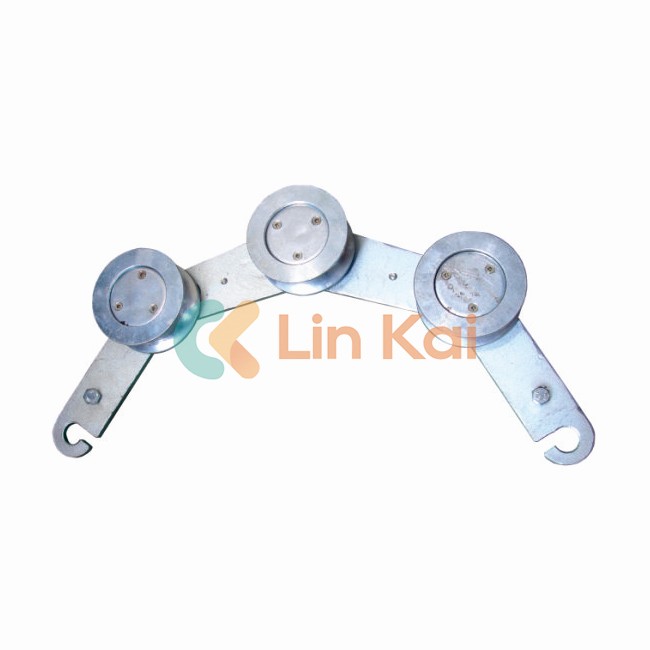

Hook type conductor or Conductor earth grounding blocks Made in China are used to eliminating the faradism in conductor and grounding wire.

Item number	Model	Bottom Diameter (mm)	Applicable Conductor	Sheave Material	Weight （kg）
12111	SHL40-75D	Φ75	Φ6-Φ40 Conductor	Aluminum Alloy	4.5
12111A	SHL48-75DA	Φ75	Φ6-Φ48 Conductor	Aluminum Alloy	5.0
12112	SHG32-60D	Φ60	Φ6-Φ32 Steel Wire Rope And Steel strand	steel	5.0
12112A	SHG38-60DA	Φ60	Φ6-Φ38 Steel Wire Rope And Steel strand	steel	5.5
