Aerial Conductor Stringing Blocks

A wide variety of stringing blocks, including tandem, normal, detachable, and helicopter stringing blocks, are available from fancy aerial conductor stringing blocks 1 Years Warranty manufactured in China. In addition to this conventional range, a number of unique solutions have been researched to overcome issues and challenges encountered by several projects in harsh environments worldwide.

Send Inquiry

Product Description

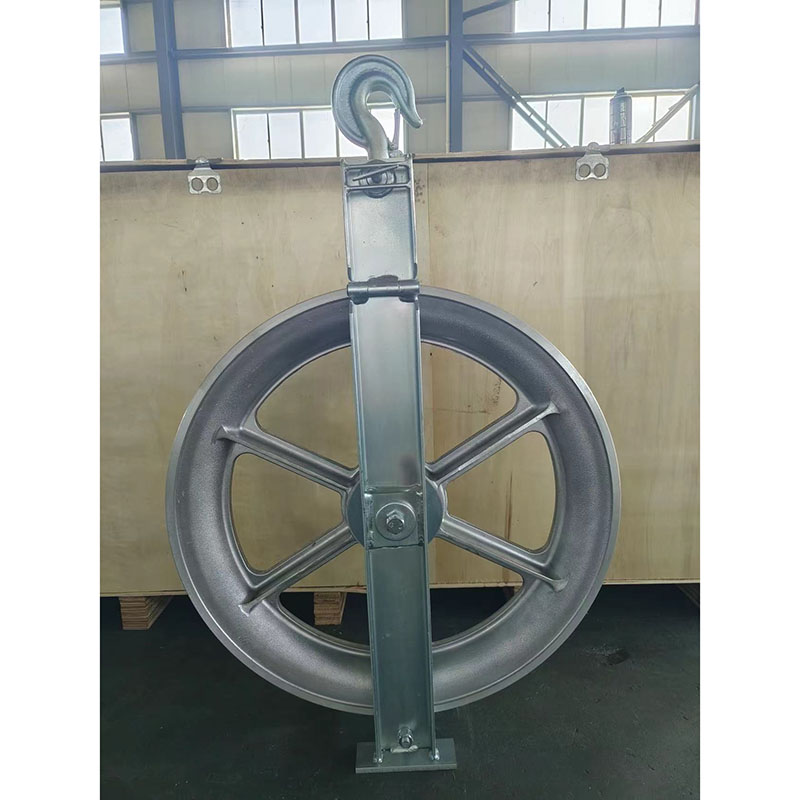

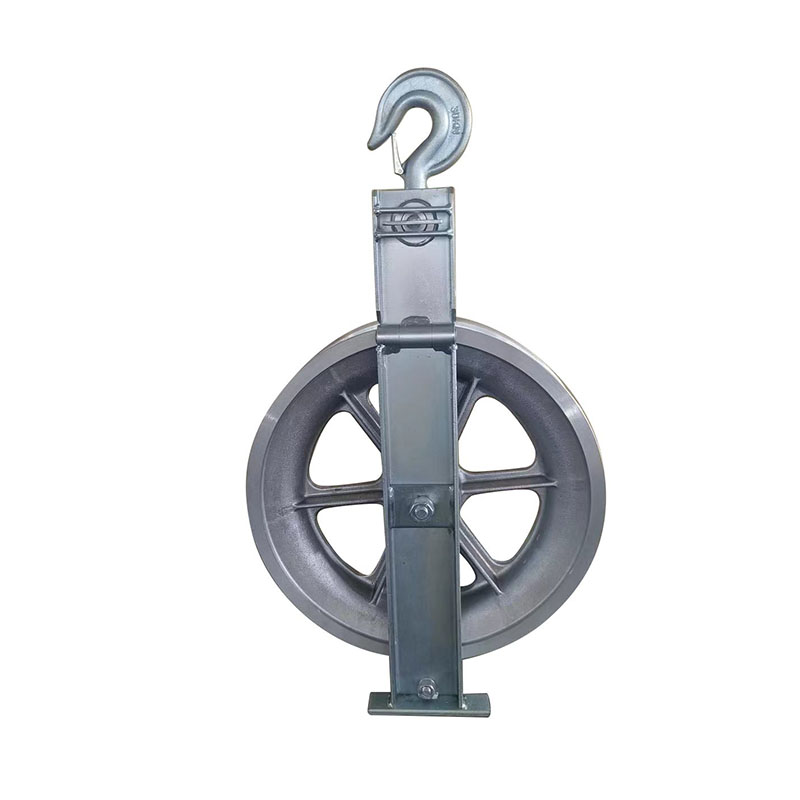

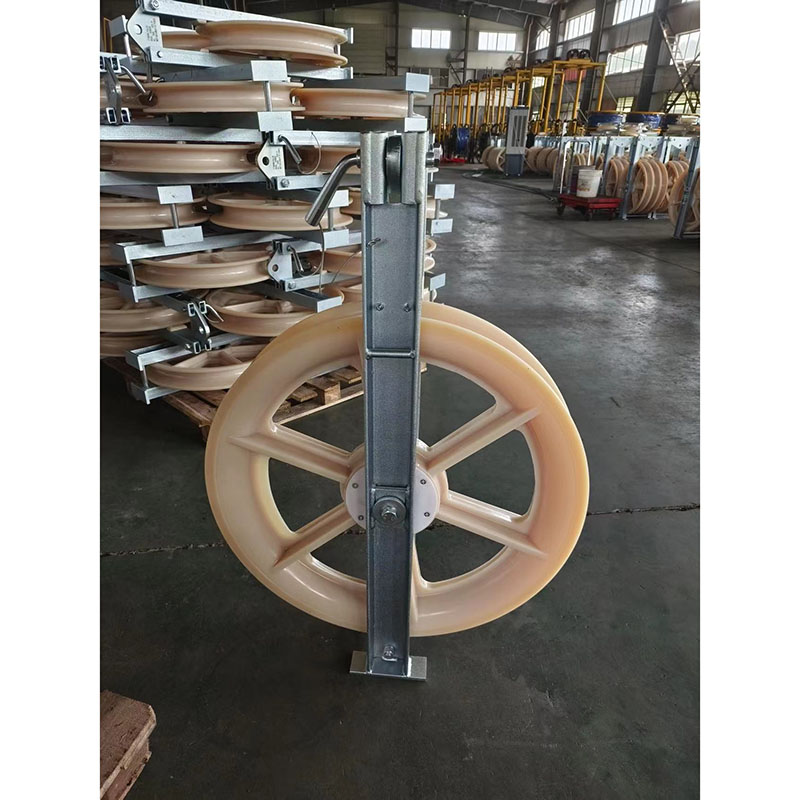

Aerial conductor stringing blocks Made in China: the single shaving stringing block with nylon sheave and aluminum alloy, with a maximum ACSR of 500,630,720. This is mostly an introduction for the 500 LGJ ACSR. This personalized aerial conductor stringing block head is made to your specifications and can be either plate or hook.

Technically speaking, plate type and swivel type heads are preferable for stringing big diameter conductors, thus use Durable aerial conductor stringing blocks instead. It is more steady. Additionally, bigger wheels might be more advantageous for the site for the same conductor size since they can support a higher rated weight and run quicker, which can shorten project completion times.

Aerial Conductor Stringing Blocks parameters

Item Number	Model	Suitable Conductor	Rated Load (kg)	Weight (kg)	Remark
10171	SHD-120×30	LGJ25~70	5	1.5	Aluminum sheave
10172	SHD-160×40	LGJ95~120	10	2.5
10173	SHD-200×40	LGJ150~240	15	4
10174	SHD-200×60	LGJ150~240	15	4.6
10176	SHD-250×60	LGJ300~400	20	6
10178	SHD-320×60	LGJ300~400	20	9.5
10179	SHD-400×80	LGJ400~500	20	15
10191	SHDN-120×30	LGJ25~70	5	1.5	Nylon sheave
10192	SHDN-160×40	LGJ95~120	10	2.5
10193	SHDN-200×40	LGJ150~240	15	3.6
10194	SHDN-200×60	LGJ150~240	15	4
10196	SHDN-250×60	LGJ300~400	20	4.5
10197	SHDN-270×60	LGJ300~400	20	5.6
10198	SHDN-320×60	LGJ300~400	20	6.7
10199	SHDN-400×80	LGJ400~500	20	13
