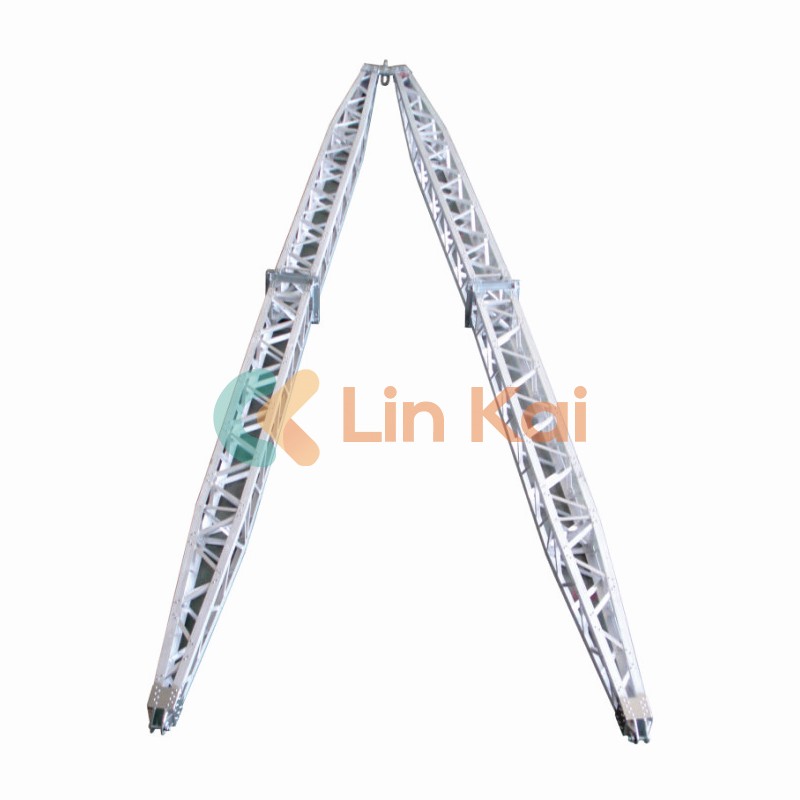

A-Shape Lattice Gin Pole

Ningbo Lingkai Manufacture’s aluminum alloy A-shape lattice gin pole in stock is assembled and erected in transmission and distribution construction. It has two kinds of head options: “upending style" and “fixed style”. The wholesale A-shape gin pole is made of a high-strength aluminum alloy as the main material, and the steel parts are galvanized. The safety factor is 3.0.

Send Inquiry

Product Description

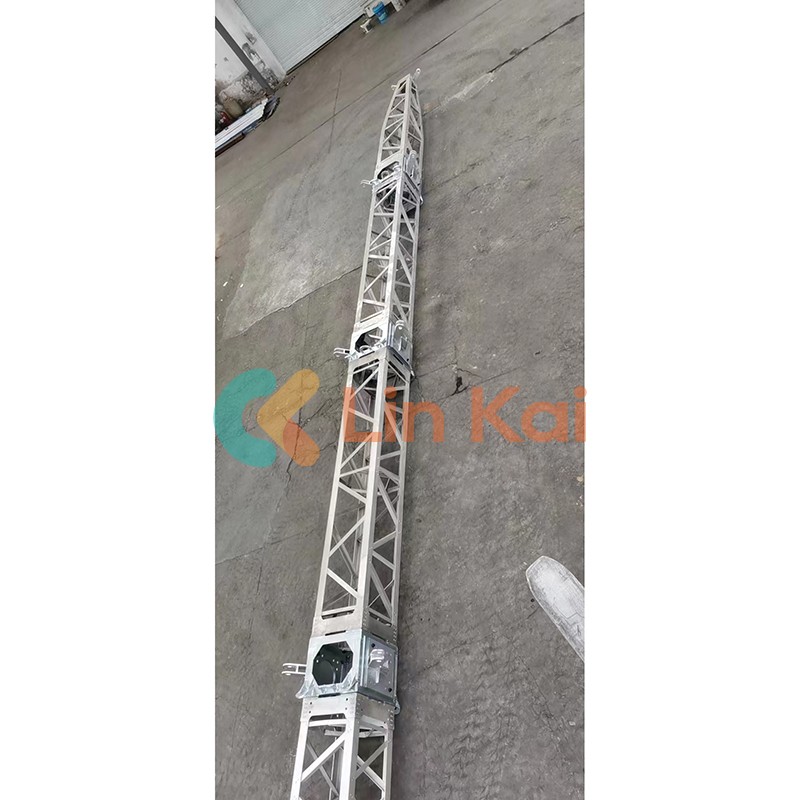

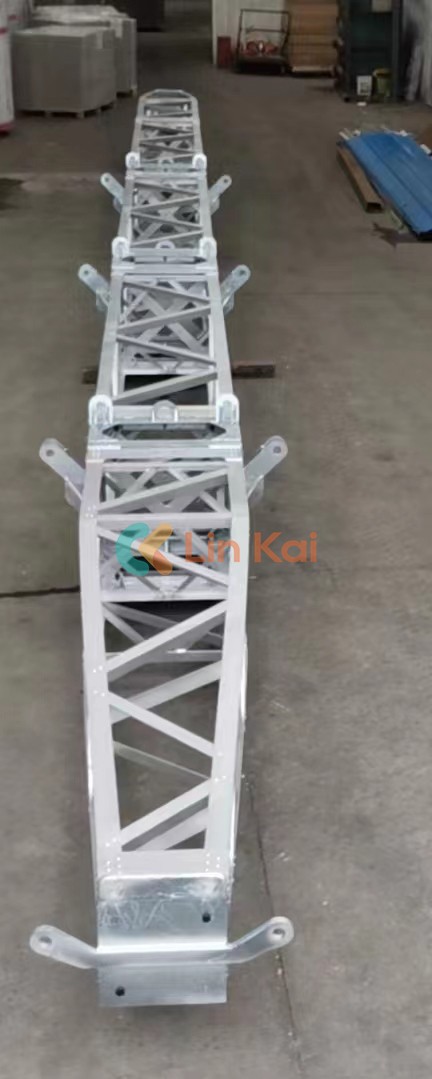

Aluminum alloy A-shape lattice gin pole made in China by Ningbo Lingkai Manufacture The bases of the cross section 300, 350, and 400A gin poles are half-round; the others are quadrate. All the A-Shape Lattice Gin Poles use high-strength aluminum alloy as their main materials; steel parts are galvanized. Under the general standard of operation, all the gin poles have more than 5 years of working life.

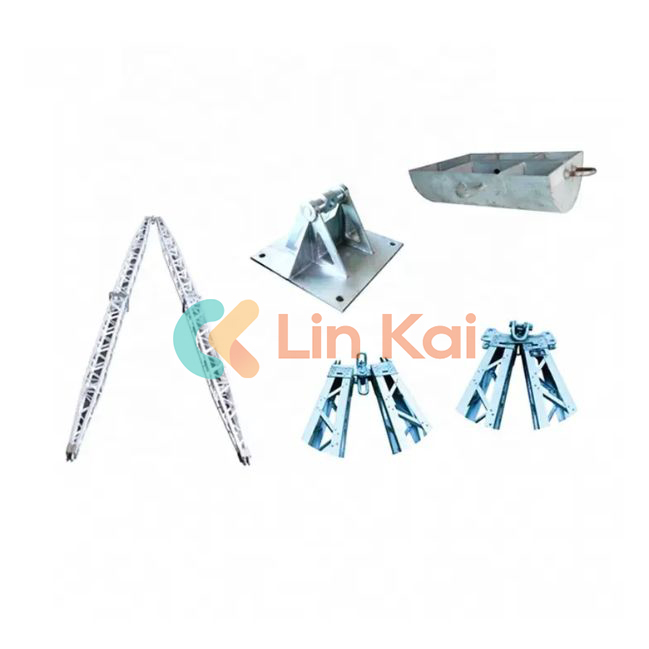

There are two kinds of heads that are optional: "upending style" and "fixed style", Please specify when placing orders. Model whose postfix "A" means it is universal and "B" means strengthened. While the A-Shape Lattice Gin Pole safety factor is 2.5,

To assemble and erect the tower and pole in transmission and distribution construction, our A-Shape Lattice Gin Pole plays a very important role.

Item number	Model	Length (m)	Base stroke (m)	Allowable vertical load (kN)	Cross section (mm)	Weight (kg/m)
03411	LBR500-13A	13	4.5	162	□500	18
03412	LBR500-14A	14	4.9	148
03413	LBR500-15A	15	5.2	136
03414	LBR500-16A	16	5.6	125
03415	LBR500-17A	17	5.9	112
03416	LBR500-18A	18	6.3	98
03417	LBR500-19A	19	6.6	88
03418	LBR500-20A	20	6.9	81
03421	LBR500-13B	13	4.5	256	□500
03422	LBR500-14B	14	4.9	234
03423	LBR500-15B	15	5.2	215
03424	LBR500-16B	16	5.6	196
03425	LBR500-17B	17	5.9	173		22
03426	LBR500-18B	18	6.3	151
03427	LBR500-19B	19	6.6	138
03428	LBR500-20B	20	6.9	127
03431	LBR600-15A	15	5.2	171	□600
03432	LBR600-16A	16	5.6	160
03433	LBR600-17A	17	5.9	148
03434	LBR600-18A	18	6.3	138
03435	LBR600-19A	19	6.6	130		20
03436	LBR600-20A	20	6.9	120
03437	LBR600-21A	21	7.3	108
03438	LBR600-22A	22	7.6	96
03441	LBR600-15B	15	5.2	275	□600
03442	LBR600-16B	16	5.6	252
03443	LBR600-17B	17	5.9	234
03444	LBR600-18B	18	6.3	219
03445	LBR600-19B	19	6.6	204		24
03446	LBR600-20B	20	6.9	186
03447	LBR600-21B	21	7.3	168
03448	LBR600-22B	22	7.6	150
